Combustion Analyzer O2 CO2 NO1 & CO (C157OILKIT) Smoke Kit

Model #: C157OILKIT
This item is not available online. eMail sales at for our best pricing as well as quantity discounts and Lead Time.

Print Friendly View
Click here to Contact Us for Best Pricing & Quantity Discounts Combustion Analyzer O2 CO2 NO1 & CO (C157OILKIT) Smoke Kit
Click to Enlarge

First Product Previous Product Product 27 of 31 Next Product Last Product
Category Combustion Analyzers


DIRECT SHIPMENT BY MANUFACTURER. Email for pricing and availability

Special order items are not returnable. Warranty honored by manufacturer.

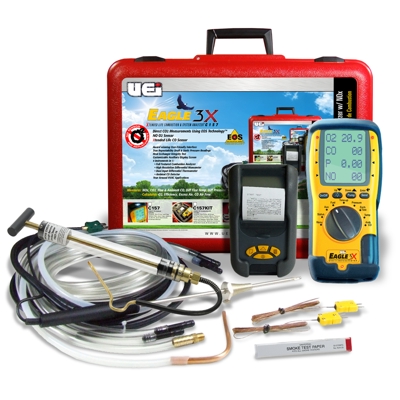

UEI C157OILKIT is the EAGLE 3X eXtended Life Combustion Analyzer & System Analyzer with Oil Burner Kit
The Eagle 3X Combustion System Analyzer eliminates the number one hassle for combustion contractors; the annual replacement and calibration of the oxygen o2 sensor. By replacing the electro chemical o2 sensor with the EOS Technology™ Co2 sensor, the EAGLE 3X now takes direct Co2 measurements and calculates the o2 level. This lowers the cost of ownership by doing away with the annual replacements of the o2 sensor and reducing calibration drifting typically found with standard electro-chemical sensors. The EOS Technology sensor is warranted for 5 years and has an unmatched industry-leading life expectancy of 10 years.
  • Measures: Differential flue temperature, Carbon Dioxide Co2, flue & ambient carbon monoxide CO, Nitric Oxide NOx & Hi-Res Differential Pressure
  • Calculates: Oxygen o2, gross/net efficiency, excess air, & CO air free
  • High level CO alarm & data logger
  • Heat exchanger test
  • Large 4 line backlit LCD display
  • 179 memory positions
  • User customizable parameters view & individual report printouts
  • Unique DMM style rotary selector
  • Protective boot with integral magnet & built-in Worklight
  • Real time clock with date & time stamp
  • Infrared printer port
  • Battery level indicator
  • Field replaceable sensors (USA only)
  • Gas Zero (Fresh Air Zero) - Is a reset procedure to maintain accurate readings
    from the EOS sensor. This procedure compensates for any change in ambient
    conditions that may impact the readings.


  • Weight: 2.2lbs. with boot
  • Handset: 7.9" x 1.8" x 3.5"
  • Probe: 11.8" x 0.25" x 9.4" stainless steel shaft, type K thermocouple (9' hose)
  • Operating temperature range: 32° to 104°F (0° to 40°C)
  • Operating humidity range: 10 to 90% RH non-condensing
  • Power: 4 AA cells / 12 hour life typical with Alkaline AA cells
  • Pre-Programmed Fuels: Natural Gas, Propane, Butane, LPG, Light and Heavy Oil, Bio-Fuel, Wood
  • C157 Analyzer with ruggedized boot with integral magnet
  • Flue Probe with depth stop cone
  • 9' Neoprene hose with incorporated "k" type thermocouple end
  • (2) Particle filters 17631
  • Hard shell carrying case AC509
  • Quick & Users start manual
  • Infrared Thermal Printer KMIRP2
  • (2) rolls of thermal printer paper 16646
  • (2)K-Type Temperature Probes
  • (2) Static Pressure Hoses
  • Draft Probe, Gas Tap and Hose
  • (4) AA alkaline batteries
  • Smoke Pump Tester, Smoke Test Paper & Chart
  • 5 year limited manufacturers warranty (including sensor)

Download Users manual (PDF format)

Download QUICK START manual (PDF format)

Download C155/C157 Data Sheet (PDF format)

UPC: 053533505900
