Articulating 6mm VideoScope (DCS16HP3ART) 3 Meter Length

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

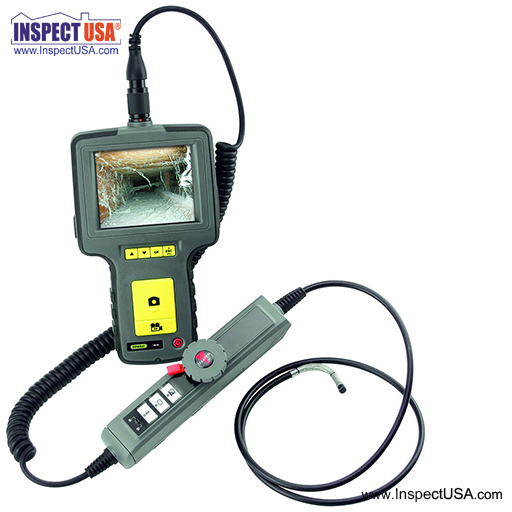

General Tools Articulating VideoScope with a Waterproof 6mm Diameter x 3 Meters in Length Probe.

• Combines the H16 console of a DCS1600 Recording Video Inspection Camera/Borescope with a 3 meter (9.9 foot) long High-Performance Articulating Probe.
• The probe is IP67 waterproof, with an articulation range of approx 155° and a VGA resolution (640 x 480 pixel) camera lit by five adjustable-brightness white LEDs. Three buttons on the probe’s controller allow you to brighten
• The ability to change the probe’s viewing axis by up to 155° in two directions—even in close quarters—makes it possible to see around corners or even "behind" the probe
• The 3.5 in. diagonal color LCD on the console makes it possible to view probe video instantly and saved video clips and pictures later
• Familiar menu-driven user interface for viewing videos and photos on the console’s LCD (or TV) and for saving media files to a standard full-size SD memory card (4GB card included)

Specifications

• H16 CONSOLE:
• Display: 3.5 in. (89mm) diagonal TFT color LCD
• Display resolution: 320 by 240 pixels (QVGA)
• Camera and recording resolution: 640 x 480 pixels (VGA)
• Analog video out formats: NTSC and PAL
• 2X zoom and horizontal mirroring controls on front panel
• Recording medium: Standard-size SD card (4GB card included)
• Operating temperature: 32° to 140°F (0° to 60°C)
• Weight: 13.4 oz. (380g)
• Power source: Rechargeable 3.7V Li-ion battery or #AC2 Adapter/Charger (included)
• P16HPART PROBE:
• Size and type: 1m (3.28 ft.) long x 6mm (0.23 in.) diameter, soft metal
• Water/oil/dust resistance: Per IP67 standard
• Depth of field: 0.25 to 12 in. (6.4 to 300mm)
• Field of view: 60°
• Camera lighting: Three forward-facing LEDs + two side-facing LEDs
• Articulation range: plus or minus 155°
• Operating temperature: -4° F to 140°F (-20 degrees to 60°C)
  NOTE most batteries are not rated for below -4° F or above 125° F
• Operating Humidity: 10 to 95% RH

Supplied with:

• H16 console
• P16HPART High-Performance Articulating Probe
• 70° mirrored probe viewing tip
• 4GB SD memory card
• AC2 AC Adapter/Charger
• USB and A/V cables
• Custom hard plastic carrying case
• 1 year limited manufacturers warranty
