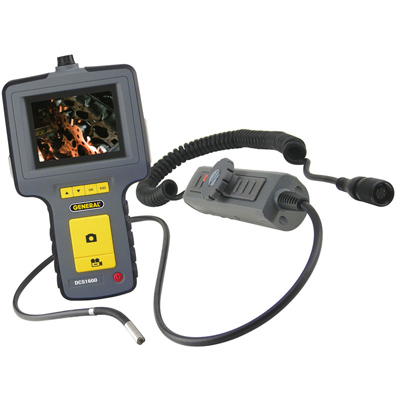

Video Borescope 0.216" x 39" Articulating (DCS1600ART) Logging

Reference only — not for sale

Model	DCS1600ART
Manufacturer	General Tools
Category	Borescopes
Status	Discontinued

Browse all Borescopes Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Articulating Data Logging Video Borescope System (DCS1600ART) General Tools

One-handed articulation function allows user to turn the probe tip to inspect targets located at sides or at an angle while it is inside a tight space.
Turning knob and lock-button are ergonomically-engineered, and offer one-handed easy control to the probe tip to view targets from ideal angle
Durable material and construction: all components pass 60,000 cycle test
P16ART-1SM: 1 meter, articulating, soft-metal probe.
Bright TFT Display
Revolutionary mobility, no need to transport large multiple components
Compact, palm-sized unit includes LED light source, TFT (Thin Film Transistor) display, camera and recorder
Takes still photos and dynamic video in real time
Internal SD memory allows user to save a whole video and output later
TV monitor output, Computer USB output
Data logging function
Multiple mirrored viewing tips and extra wide view angle
Multiple video formats compatible with most software including Windows Media Player
No special software required
Rechargeable batteries can record for 4 hours
Water, oil, dust and scratch resistant
Optimized illumination
Rapid assembly of lens module
Illumination intensity easily adjusts to environment
3.5" (89mm) extra-wide TFT monitor

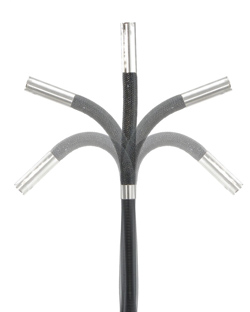

Articulation Angle: 2 way
Articulation Sweep: 0 to ± 120°
5.5 mm Diameter Insert Tube 325(H) 250(V)
Housing: Steel
Light Source: White LED
Depth of Field (DOF): 1cm~6cm
Water Resistant: Only the Insert tube is water resistant
Working Temperature: 0 degrees C~55 degrees C Console
Power: Battery rechargeable Li-Polymer battery, 3.7V Power supply AC 100-240V 50-60Hz Power consumption DC5.5 1.8A
Display: 3.5 TFT LCD QVGA
Recording Medium: 1G SD CARD (up to 2G)
Video Out Format: NTSC & PAL

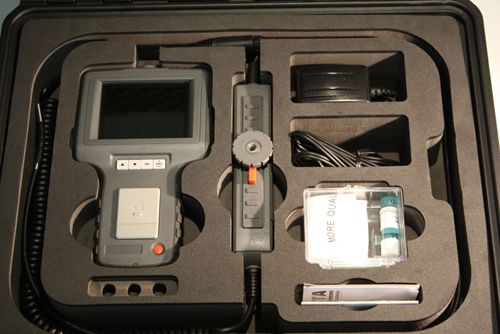

Supplied with:

Charger
1 Meter articulating probe (P16ART-1SM)
SD memory card
USB to 5-pin mini-B cable
Video cable
Cleaning cloth
Cotton swabs
Instructions
Heavy duty water proof blow mold case

Ideal for aircraft maintenance, machinery and production line inspection, petro-chemical and power plant inspection, general MRO and facility management.

Download Users Manual (PDF format)
