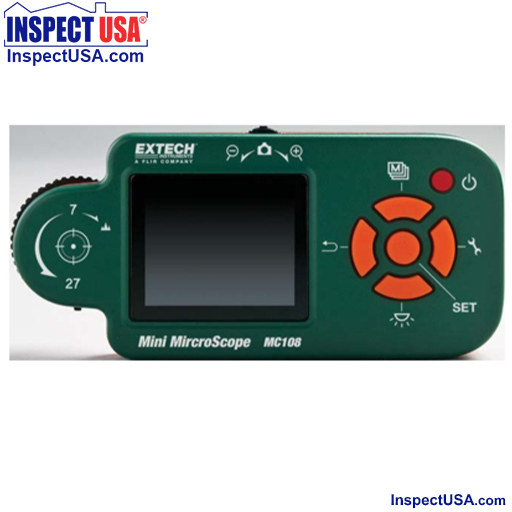

Portable Mini Microscope (MC108) 1.8" TFT Color LCD with 2MB Memory

Reference only — not for sale

Model	MC108
Manufacturer	Extech
Category	Magnifiers
Status	Discontinued

Browse all Magnifiers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Digital Mini Microscope 1.8" TFT Color LCD Screen with 2MB Memory

Features:

1.8” TFT Color LCD Screen with 2MB Memory
7x to 108x magnification range:
- Optical zoom: 7x to 27x
- Digital zoom: 4x
Capture and download up to 60 JPEG images (320x240 pixels) to your PC
4 white LEDs with adjustable brightness for object illumination
5 Image Effect modes: Normal, Gray, Inverse, Ruler, and Comparison
Dual Window View simultaneously displays the magnified image next to the original image
Real-time imaging on your PC screen via USB interface and included software
The unit can run from the batteries or from USB power when the USB cable is connected to a PC or to the power adaptor.
The Ni-MH batteries will recharge automatically when the microscope is connected, with the USB cable, to a PC or to the USB power adapter.
The unit may also use alkaline batteries. Do not mix battery types in use and do not recharge alkaline batteries.

Specifications:

Sensor element: 300,000 pixels CMOS
Lens: High sensitivity lens
Auxiliary light: White LED x 3 with super high brightness
LCD screen: 1.8” TFT color LCD screen
Memory: 2MB Data FLASH -- capacity ~ 60 pictures
Linkage: USB 2.0
Magnifying rate:
- Optical zoom 1 ~ 7x and 27x.
- Digital zoom 4x.
Plug: DC IN terminal (mini USB plug)
Power: 3 AAA, RO3, 1.5V alkaline batteries or 3 x 1.2V Ni-MH rechargeable batteries.
AC transformer: (Output: DC 5.0V/1000mA; Input: AC 100-240V 50/60Hz).
Current consumption: Maximum = 220mA (with LEDs on at highest illumination)
Operational temperature: -5 degrees C ~ 50 degrees C
Environmental humidity: <85% RH (no dew) recommended
Operational modes:
- Digital Camera Mode
- Digital Magnifier Mode
- Digital Microscope Mode
Dimensions: 4.7 x 2.2 x 0.8" (120 x 56 x 20mm)
Weight: 2.5oz (70g) without batteries


Fabric inspection	Plant research		PC board inspection

Check for counterfeit money		Fingerprints

Analysis of printing	Soldering check		Dual Window view simultaneously displays magnified image next to the original image
