Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

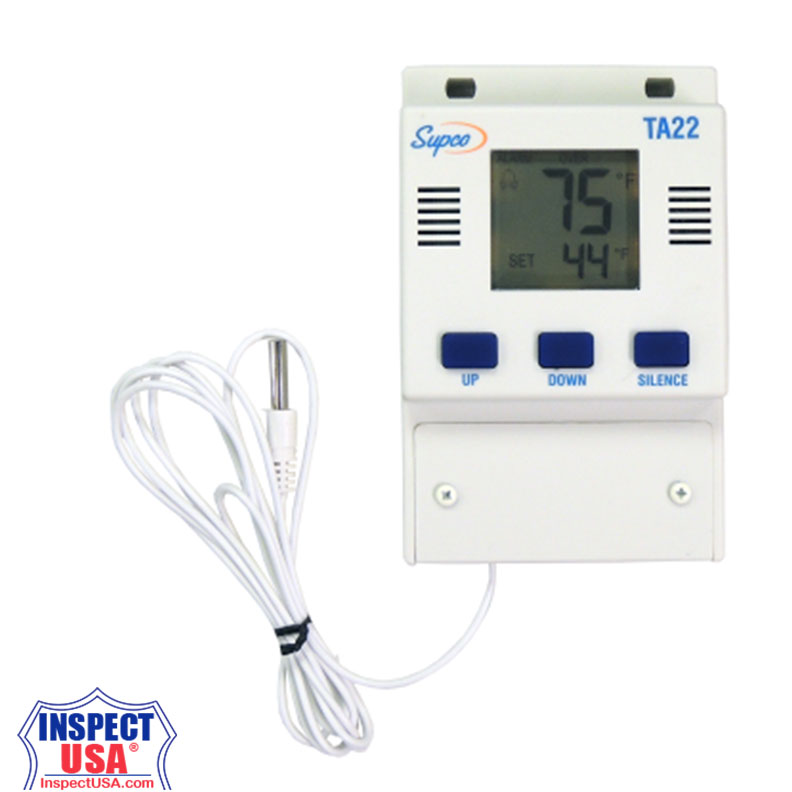

Temperature Alarm Digital (TA22) Single Set Point, -40 to 160 Degrees F, 120 VAC

Reference only — not for sale

Model	TA22
Manufacturer	Mannix Instruments
Category	Thermometers
Status	Discontinued

Browse all Thermometers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Digital Temperature Alarm (TA22) Single Set Point, -40 to 160 Degrees F, 120 VAC

Built-in terminals for remote alarm or telephone dialer connection. Alarm switch for 'No delay' or '1 hour delay'. Just flip a switch to activate alarm on a rise or fall in temperature.

Alarm Channels: 1. Probe: encapsulated sensor with 6 ft. Cord. Sensor type: thermistor. Maximum probe extension: 200'.

Adjustable Alarm Temperature.
Remote Alarm Connections: screw type, 120 VAC,5 Amp (dry contacts).
Power: 120 VAC. Case: Hi-impact thermoplastic.
Mounting: surface, external holes provided.
Built in terminals for remote alarm or telephone dialer connection.
Power ON indicator light; ALERT warning light and audible warning sound.
Sensor wire can be cut and extended up to 200 feet using any standard 22 gauge Wire.

Specifications:

Temperature range from -40 to 160 degrees F.
Temperature accuracy display: within 2 degrees F.
90 db audible alarm, AC Adapter included.
Line Voltage: 120 / 240 vAC.
Probe: 6 feet with encapsulated sensor.
Dimensions: 3" x 5" x 1-1/2"

Applications: food markets, convenience stores, supermarkets, restaurants, florists, greenhouses, laboratories, pharmaceutical storage facilities, refrigerated transport, cold storage facilities and computer. A reliable, inexpensive alarm for refrigerators and freezers.
