Digital Video Scope 0.47" x 39" (DCS300) Obedient Shaft 3.5" LCD

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

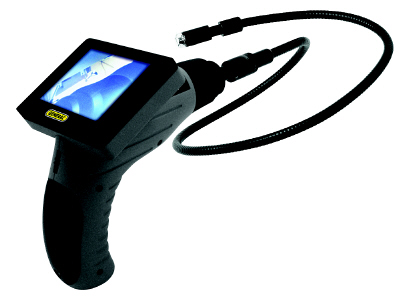

General Tool's Seeker 300 Video Borescope System offers a large 3.5-inch LCD color monitor and a 12mm flexible, configurable camera probe with adjustable LED lighting. The Seeker 300 is ideal for use in automotive maintenance, electrical repair, plumbing applications, HVAC/R and the visual inspection of otherwise inaccessible areas. This Video Borescope Kit also includes a mirror, magnet and pick-up hook that can be attached to the end of the probe.

• 3.5" (88.9mm) Color LCD Screen for crystal clear image, superb clarity and viewing effect.
• 0.47in. (12mm) diameter Camera-tipped Probe is flexible and strong with built-in adjustable LED lighting, and is slim enough to perform automotive engine check-up
• Flexible Probe retains configured shape to suit different inspection needs
• Probe Length: Standard: 3.28ft. (1m), Optional: up to 32.8ft. (10m)
• View findings instantaneously

Specifications:

• Display: 3.5" (88.9mm) color LCD
• Resolution: 320 x 234 Pixels
• Camera-tipped Probe diameter: 0.47in. (12mm)
• Probe Length: Standard: 3.28ft. (1m), Optional: up to 32.8ft. (10m)
• Field of Depth : .98" to 11.8" (25 to 300mm)
• Field of View: 60°
• Light Source: two adjustable LEDs
• Working Temperature: 32° to 113°F (0° to 45° C)
• Power Source: 1 “9V” battery

Supplied with:

• 3.28ft. (1m) Flexible Probe
• Extension Tools: (Mirror, Magnet, Pick-Up Hook)
• 1 “9V” Battery
• Blow Mold Case
• Instruction Manual

Download Users Manual (PDF format)
