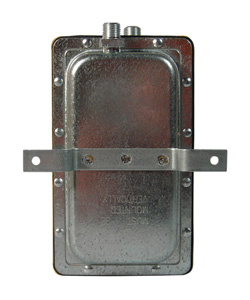

Dual Purpose Air Pressure Switch (CSP1) 0.5 to 12 inches WC

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Dual Purpose Air Pressure Switch (CSP1) 0.5 to 12 inches WC

Features:

• Responds to positive, negative or differential air pressure
• Design eliminates "fluttering" or malfunction due to shock or vibration normally encountered with "sail switches"
• Can be mounted in any position but upside-down
• Ideal for electronic air cleaners, natural & induced draft burners, power humidifiers, process drying, refrigeration equipment & duct strip heaters
• uL listed & CSA certified
• Easy to install

Specifications:

• Ambient temperature: -40° to 180° F
• Maximum pressure: 1/2" psi
• Operating range: 0.5” to 12.0" WC
• Conduit opening: 7/8" diameter accepts 1/2" conduit
• Electrical rating:
  • 15 Amp 125/250/277vAC
  • 1/4 HP 125vAC
  • 1/2 HP 250vAC
• Switch action: SPDT cooling/heating appliance switch
• Electrical switching: Single pole, double throw snap action
• Dimensions: 5.75" x 3.18" x 2.5"
• Weight: 14.5 oz.

Supplied With:

• 6" connection hose
• Mounting accessories
