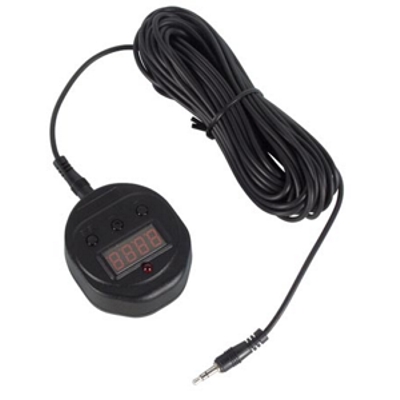

Entry Exit Counter (PEM7D-C) Works with Velleman PEM7D

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Features:

• sensing type: counter for access control system PEM7D
• applications: garage door, entrance, supermarket, restaurant, warehouse, ...
• contents:
  • one 4-digit counter
  • one cable (10m) to connect the speaker output of the PEM7D with the input of the 4-digit counter PEM7D/C
  • one mounting bracket (black finish) and mounting screws
  • manual

Specifications:

• input voltage: 9-15Vdc
• max. display: 9999 (4 digits)
• addition: push "+" to add 1
• subtraction: push "-" to subtract 1
• manual operation: yes, hold + or - for 1 sec.
• reset: press reset button ('0000')
• monitor colour: red
• casing material: ABS
• current consumption: 48.7 mA ±10% (when '0000')
• standby current: 25mA max.
• light source: IR LED
• ambient temperature: -20°C~45°°C (-4°F~122°F)
• response time of speaker: chime: 1 sec - - alarm: 30sec (adjustable)
• external chime output: NPN output
• speaker output: chime/off/alarm (selected by slide switch)
• included: mounting bracket, screw and cable (10m) with twin plugs

Download Users Manual (PDF format)
