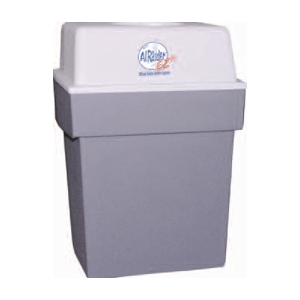

Water Mitigation System for Radon & VOCs (28357) EZ95 10 GPM

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Super-quiet spray diffused bubble aeration system, with built-in pump with self priming set-up, on/off and fail-safe floats, EZ Pump Control with Smart Valve system, built-in water hammer arrester, audible alarm and many more unique features. System includes built-in 3/4" solenoid valves and system alarms. Bypass assemblies sold separately. Available in 115 volt only. Removes up to +95% of radon.

• The EZ95, unlike its competitors, has a double-wall foam-insulated tank that will not sweat
• Small and Compact in size but big in effectiveness, achieving up to 95% radon reduction
• Fully integrated internal re-pressurization pump and control make installation easy. No external re-pressurization system necessary.
• Designed for easy maintenance. Just lift the lid to access system components.
• Unique design including the blower cover and built-in water hammer arrester, make it the quietest aeration system in its class.
• Unique design maintains a negative pressure to avoid radon leakage into the living area.
• EZ Prime Valve protects the pump and takes the guesswork out of pump priming.
• Two EZ Failsafe Floats help to prevent extreme water level fluctuations. The upper float guards against overflow, the lower float protects the pump from a potential run-dry condition.
• EZ Pump Control combines a Flexcon Smart Valve and pressure switch to provide pump control without large pressure tanks, reducing fluctuations in pressure on/off cycling.
• Two solenoid valves help to avoid overflow if one is blocked by debris or sediment.
• Audible Alarm sounds if the upper float rises due to on/off float failure. The alarm also sounds if the aeration process is interrupted.
• Blower: High Flow 20000 RPM 0.21HP 800 Watt 115VAC/5.7 Amp
• Pump: 1/2 HP 1100 Watt 115V/9 Amp Thermally Protected Submersible
• EZ Pump Controller: Pressure Switch with Flexcon Smart Valve to Regulate Pump Pressure and Reduce On/Off Cycling
• Air Alarm: Pressure Switch with 120 VAC/0.02 Amp Buzzer
• Solenoid Valves: Normally Closed Metal Housed Class Electromagnetic Valves F120 VAC Buna N Seal Brass Valve Body 3/4" NPT
• System Voltage: 110-120vAC
• Electric Supply: 20 Amp 115VAC Dedicated Circuit
• Recommended Flow: Capable of up to 10 GPM
• Radon Reduction: Up to 95%+
• Water Inlet/Outlet Connections: 3/4" Sharkbite to Suit 3/4" Pex or Copper
• Air Outlet: 2” PVC Pipe Female Socket (Solvent Cement)
• Air Inlet: Via 10 Micron Filter/Silencer can be remotely mounted
• Tank: Double Wall Insulated NSF Rated for Potable Water
• Tank Dimensions: 27.62 “ H x 25.17” W x 25.23” L
• Tank Operating Capacity: 27 Gallons (Total Internal Volume 41 gallons)
• Overall Dimensions: 36.37” H x 25.65” W x 25.71” L
• Pipe: NSF Rated for Potable Water
