Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

UEI CO Flue & Exhaust Analyzer Kit (CO91) with Pump & Probe

Reference only — not for sale

Model	CO91
Manufacturer	UEI
Category	Carbon Monoxide
Status	Discontinued

Browse all Carbon Monoxide Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

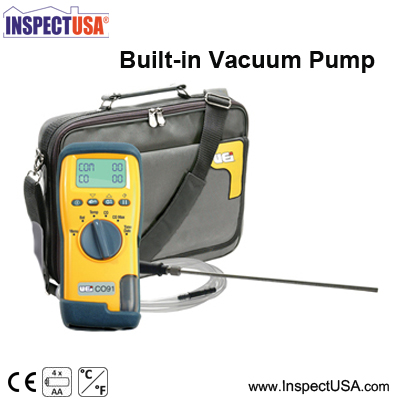

UEI CO Flue & Exhaust Analyzer Kit (CO91) with Pump & Probe

The UEI CO91 has a built-in vacuum pump and is supplied with a SS probe on an 84" hose and is used to check ambient CO levels, find leaks along flue pipes, or measure CO concentration in flue gas from furnaces or residential combustion appliances. With a link to the optional infrared printer, results can be printed to document test results, including the date and time. Perform adjustments to the appliance, and then recall the highest level of CO with the CO Max function. With the temperature function you are able to test register outlet temperatures, or monitor stack gas temperature.

Simple to operate DMM style selector
Measures ambient CO levels or CO concentration in flue gas
CO MAX captures highest value
Temperature measurement for ambient or stack gas
Auto-zero at power up
Link to optional infrared printer with date and time (KMIRP2 Infrared Printer)
Displays temperature in °F or °C
Self contained pump with on/off switching
Backlit jumbo LCD display

Specifications:

Temperature measurement: 32° to 1,112°F (0 to 600°C)
Temperature accuracy: ±5.0°F (2.0°C) ± 0.3% of reading
Temperature resolution: 1.0°F
Carbon Monoxide (CO) measurement: 0 to 2,000ppm
CO accuracy: ±5% of reading or ±10 ppm at <10ppm
CO resolution: 1ppm
Dimensions: 7.9" L x 1.8" D x 3.5" W
Weight: 2.2 lbs
Probe: 11.8" L x 0.25" Diameter (stainless steel) with 7.8" Long stainless steel Shaft (grip handle)
Hose: 84" long
Battery life: Approximately 8 hours of continuous use.
