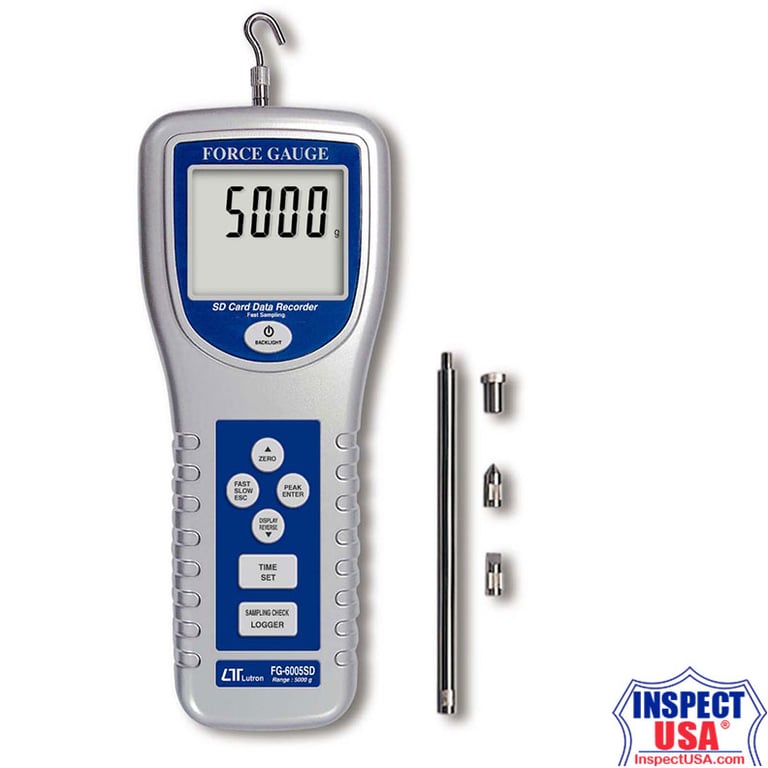

Lutron Force Gauge Tension & Compression 5Kg (FG-6005SD) DataLogging
The FG-6005SD Force Gauge provides accurate and reliable force measurements with real-time data logging capabilities, making it an essential tool for various industrial applications.
1. High Precision Measurement: Measures force up to 5,000 g with high resolution and accuracy, supporting both tension and compression (push and pull) measurements.
2. Real-Time Data Logger: Utilizes an SD memory card for real-time data recording with a built-in clock and calendar, allowing data sampling from 1 second to 8 hours 59 minutes 59 seconds for normal mode and 10 ms to 500 ms for peak hold mode.
3. Peak Hold Function: Captures and holds the maximum load value during measurements, ensuring precise recording of peak forces.
4. User-Friendly Interface: Equipped with a large LCD with backlight for easy reading, and push buttons for unit selection, zero/tare function, and display direction selection.
5. Versatile Display Units: Displays measurements in grams (g), ounces (oz), and Newtons (N), providing flexibility for various applications.
Technical Specifications:
- Measurement Range and Resolution:
- Force Measurement:
- Capacity: 5,000 g / 176.40 oz / 49.03 Newton
- Resolution: 1 g / 0.02 oz / 0.01 Newton
- Minimum Display: 3 g / 0.10 oz / 0.03 Newton
- Accuracy: ±(0.4% + 1 digit) within 23 ± 5℃
- Data Logging:
- SD Memory Card: 1 GB to 16 GB
- Sampling Time (Normal Mode): 1 second to 8 hours 59 minutes 59 seconds
- Sampling Time (Peak Hold Mode): 10 ms to 500 ms
- Memory Capacity (Normal Mode): Up to 16 GB
- Memory Capacity (Peak Hold Mode): Up to 1,000 data points
- Power Supply:
- Batteries: UM3/AA (1.5V) x 6
- AC Adapter: DC 9V (optional)
- Operating Environment:
- Temperature: 0 to 50℃
- Humidity: Less than 80% RH
- Dimensions and Weight:
- Instrument: 215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inches)
- Weight: 650 g (1.43 lb with batteries)
- Display:
- Type: LCD, 5 digits, 16 mm (0.63 inch) digit size, with backlight
- Display Direction: Positive or Reverse, selectable
Accessories Included:
- Instruction Manual: 1 PC
- Flat-Head Adapter: 1 PC
- Hook Adapter: 1 PC
- Cone Head Adapter: 1 PC
- Chisel Head Adapter: 1 PC
- 120 mm Extension Rod: 1 PC
- Carrying Case: 1 PC
Optional Accessories:
- SD Memory Card
- Test Stand (Model: FS-1001)
- Wedge Grip (Model: WG-01)
- RS232 Cable (Model: UPCB-02)
- USB Cable (Model: USB-01)
- Data Logging Software (Model: SW-U801-WIN)
- Excel Data Acquisition Software (Model: SW-E802)
Advanced Features:
- Microprocessor Circuit: Ensures high accuracy and repeatability with low power consumption for long battery life.
- Overload Protection: Provides safety and durability for high-load measurements.
- Professional Test Stand: Available as an optional accessory for stable and consistent measurements.
