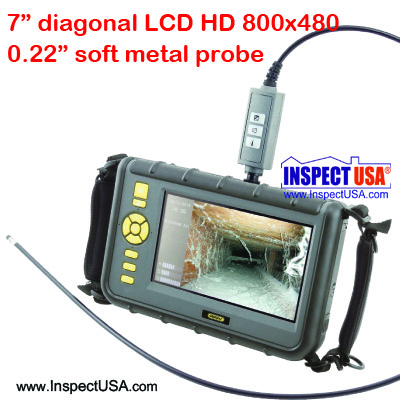

General Tools Digital Video Borescope 0.22 x 39" (DCS2000) 7" HD LCD

Reference only — not for sale

Model	DCS2000
Manufacturer	General Tools
Category	Borescopes
Status	Discontinued

Browse all Borescopes Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

General’s best super high-performance video borescope system with 7" Screen. Rugged construction, built to withstand a 39" fall on a hard surface.

Console Display Size, Type: 7 in. (178mm) diagonal TFT color
LCD Console Display Resolution: 800 x 480 pixels
Console Ingress Protection: To water, oil & dust per IP55 standard
Console Impact Resistance: Drop from height of 39"
Console Recording Resolution: 640 x 480 pixels (VGA)
Video File Format: .avi
Photo File Format: .jpg
Video Zoom Options: 1.5x, 2.0x or 5.0x
Frame Rotation Options: 90°, 180°, 270°
Interfaces: Analog audio/video & USB 2.0 jacks Analog
Video Out Formats: NTSC and PAL
Video Frame Rate: 30 frames per second (fps)Compression Format: Compatible with MPEG4
Recording Medium:Standard-size SD card of up to 32GB capacity (4GB card included)
- Capacity of Included 4GB SD Card:Three hours of VGA resolution video consuming an average of 26 Mbytes/minute
Super-clear viewing on 7" (178mm) diagonal LCD with high-definition 800 x 480 pixel resolution
(39" long, 0.22" (5.5mm) diameter soft metal probe with 640 x 480 pixel (VGA) resolution camera
Equipped with six LEDs, four facing forward and two at an angle, to provide glare-free lighting in most environments
Light boost, anti-reflection and 90° frame rotation buttons on probe handle maximize visibility of the inspection target
Probe and stainless steel camera head are IP67 water, oil and dust-proof. Console is IP57 water, oil and dust-proof as well as drop-proof from height of 39"
Records VGA resolution video clips (with voice annotation) and still images using familiar menu-driven user interface. Saved video and photo files incorporate real-time brightness and zoom adjustments made prior to recording or “on the fly” to optimize target clarity and detail
Easy-to-navigate album-style (3 x 3 grid) display of all stored media files
Different areas of interest on saved photos can be selected for extreme close-up viewing
Field of view can be enlarged up to 5X, mirrored horizontally, or rotated 90°, 180° or 270°. Features can be applied alone or together to make targets easier to inspect and serial numbers easier to read.
4GB SD memory card
Analog video out/headphone jack
110° mirrored probe viewing tip
Adjustable Auto Power
Choice of 27 menu languages*
Ttripod mount
Powered by rechargeable Lithium-polymer battery

Supplied with:

Console
VGA Resolution Probe
110°Mirror
4GB SD Card
USB Cable
AC Adapter
Custom fitted, airtight, hard plastic carrying case
Hand Strap
User’s Manual
1 Year Limited Manufacturers Warranty

* Menu Languages: English, French, German, Italian, Spanish, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Danish, Dutch, Polish, Russian, Bulgarian,Turkish, Swedish, Finnish, Norwegian, Estonian, Lithuanian, Latvian,Hungarian, Czech, Slovak, Slovenian, Romanian, Greek
