Weather Tight Cord Grip Strain Relief (25008) 1/2" NPT Bushing

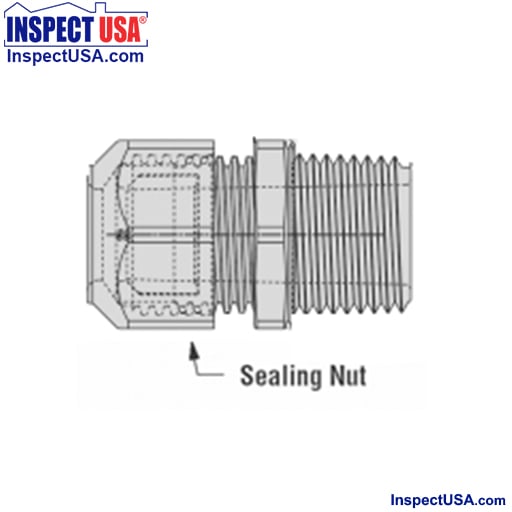

Heyco Liquid Tight Straight-Thru Cord grip (25008) 1/2 inch NPT Bushing

All nylon construction with TPE (Thermoplastic elastomer) sealing gland. This bushing resists salt water, weak acids, gasoline, alcohol, oil, grease and other common solvents.

• Overall length: 1.75"
• Thread length: 0.625"
• NPT thread size: 0.5"
• Suggested clearance hole for non-threaded mounting: 0.875"
• Working temperatures: -22°F to 212°F (-30°C to 100°C)
• Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure
• Suitable for NEMA type 4 and 6
• RoHS Compliant; M-8363232 and M-8368464
