Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

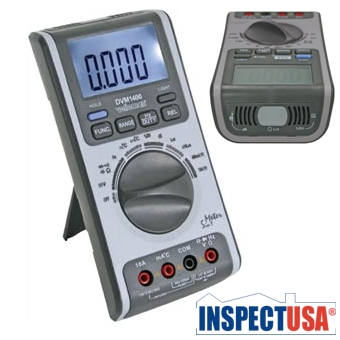

Velleman 5-in-1 Multimeter (DVM1400) also Temp, RH, dB & LUX

Reference only — not for sale

Model	DVM1400
Manufacturer	Velleman
Category	Power Testers
Status	Discontinued

Browse all Power Testers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Velleman 5-in-1 diagnostic meter measures temperature, humidity, light, sound and voltage

Low battery indication
Diode and continuity test
Auto power-off:
Continuity buzzer
Data hold feature
Auto range or manual range
Relative measuring possible in all modes except frequency measurement
Back-lit display
Over range indication: "OL"

Specifications:

DC voltage: 200mV/20/600V
- Accuracy: within 0.7% of reading + 2 digits ( within 1.0% of reading + 2 digits for 600V range)
- Input impedance: 10 Milli-ohm
- Maximum input: 600 V DC
AC voltage: 200/600V
- Accuracy: within 0.8% of reading + 3 digits ( within 1.5% of reading + 5 digits for 600V range)
- Input impedance: 10Mohm
- Frequency range: 40-400Hz
- Maximum input: 600V AC
DC current: 200µ/200m/10A
- Accuracy: 40mA & 400mA within (1.2% of reading + 3 digits) ; 10A within (2.0% of reading + 10 digits)
- Overload protection: 0.5A / 250V fuse (10A range not fused)
AC current: 40mA / 400mA / 10A
- Accuracy: 40mA & 400mA within (1.5% of reading + 5 digits) ; 10A within (3.0% of reading + 10 digits)
- Overload protection: 0.5A / 250V fast fuse (10A range unfused)
Resistance: 200/2k/200k/1M
- Accuracy: within 1.2% of reading + 2 digits (within 2.0% of reading + 5 digits for 40M range)
- Overload protection: 15 seconds max. 250V on all ranges
Capacitance: 4nF / 40nF / 400nF / 40uF / 200uF
- basic accuracy: 4nF to 40uF within (3.0% of reading + 3 digits) ; 200uF within (8.0% of reading + 10 digits)
Frequency: 9.999Hz / 99.99Hz / 999.9Hz / 9.999KHz / 199.9KHz / >200KHz
- Accuracy: 9.999Hz to 199.99 within (2.0% of reading + 5 digits) ; >200KHz for reference only
- Overload protection: 250VDC or rms AC
Voltage measurements: 700V AC and 700V DC maximum
Current measurements: 10A maximum
Resistance measurements: 40 Milli-ohm maximum
Sound level measurements: 35 to 100dB
- Resolution: 0.1dB
- Instrument frequency: 100Hz to 10kHz
Light measurements: up to 40000 Lux
- Accuracy: within 5% of reading + 10 digits
Humidity measurements: 30 to 90% RH
- Resolution: 0.1% RH
- Accuracy: within 5% RH
Temperature measurements: -4°F to +1832°F
- Resolution: 0.18°F (-4°F to 752°F) / 1.8°F (752°F to 1832°F)
Capacitance measurement: 4nF to 200µF
Frequency measurement: 9.999Hz to 199.99kHz
Duty cycle measurement: 0.1 to 99.9%
Temperature: -4°F to 1832°F
Diode test:: 1.0mA (open circuit voltage = 1.5V DC)
Maximum display: 3999
Dimensions: 3 11/32" x 7 3/32" x 1 49/64"
Weight (with battery): approx. 9.9oz (incl. holster)
Power supply: 9V battery (included)
