Infinity Series Keyed Engage Switch ICMENGAGE

Model #: ICMENGAGE

Condition: New

$75.95

Contact Us for Best Pricing & Quantity Discounts

Contact for Price & Availability
Product 18 of 23

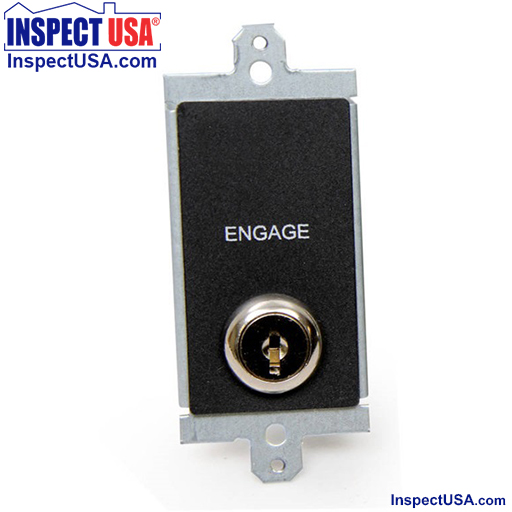

Infinity Series Keyed Engage Switch ICMENGAGE

Make sure all your Infinity Control Modules only operate when necessary by wiring them to this keyed switch.

  • Scratch-resistant Lexan® face panel with a black background and white screened legend.
  • Durable steel frame mounts into an Infinity Gang Box or standard electrical back box and securely holds the Infinity Gang Plate.
  • Standard mounting hardware included.
  • Switch power ratings: 3A @ 24VDC | 3A @ 24VAC.

Photo of 6 Infininty Modules Installed

Installation Instructions:

  1. Mount the box securely into the wall.
  2. Connect conduit and pull wiring as required.
  3. Terminate wires as required for your application.
  4. Refer to the rating and load chart.
  5. Attach the frame to the box using frame screws #6s.
  6. Select the appropriate switch label or letter the blank side of the labels supplied. Insert the switch label into the backside of the faceplate.
  7. Single gang installation: Proceed to step 10.
  8. Multi gang installation: Repeat steps 4 thru 9 until all modules are wired and installed.
  9. Review and confirm field wiring. Damage and/or malfunction can result from improper wiring and/or set up.
  10. Place cover over assembly and attach to box with cover screws.
  11. Power up system to test for proper operation of all zones and function.
