Digital Light Meter to 20,000 LUX or FC (DLM1337) Remote Sensor

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

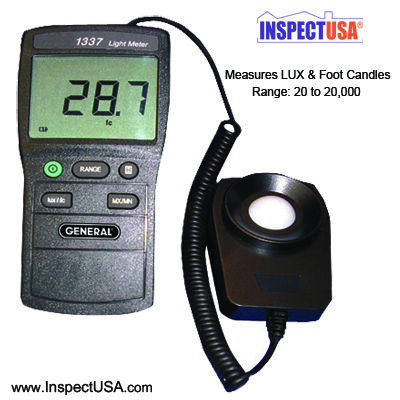

The 1337 digital light / luminance meter is a precision instrument used to measure luminance (LUX or foot-candles) in the field. Fully cosine corrected for the angular incidence of light. The sensor is a very stable, long-life silicon photo diode and spectral response filter.

• Light measuring levels: 20 to 20,000 or Foot Candles
• High Accuracy & quick response
• Data hold function
• Unit & sign display for easy reading
• Automatic zeroing
• Meter corrected for spectral relative efficiency
• Short rise and fall times
• Maximum & minimum measurements

Specifications:

• Range:
  • LUX:
    • 20 to 200 LUX
    • 2,000 to 20,000 Lux
  • FC:
    • 20 to 200 FC
    • 2,000 to 20,000 FC
Note: 1 FC = 10.76 LUX
• Display: 3 1/2 digit LCD
• Over-range display: LCD will show "OL" symbol
• Spectral accuracy: CIE Vλ function f '1 ≤6%
• Cosine response: f '2 ≤2%
• Sampling rate: 2.5 times/second
• Operating temperature: 32° to 104° F
• Operating humidity: 0 to 80% RH
• Power source: (6) AAA alkaline or NiMH rechargable batteries
• Battery life: Approx 400 hours

Includes:

• Carrying Case
• Instruction manual
• (6) AAA alkaline batteries

Download Users Manual (PDF format)
