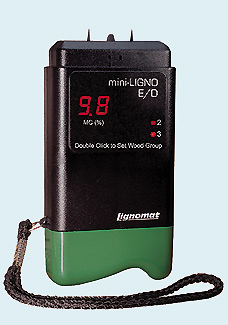

Lignomat Mini Ligno Moisture Meter 6-45% (ED0) 3/16" and 7/16" Pins

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The mini-Ligno E/D moisture meter has a bright, easy-to-read, digital display and a wide moisture range - at an affordable price. Great for occasional use or in-line measurements. The moisture range is low enough for cabinet makers, professional woodworkers and hardwood floor installers and high enough for construction lumber, wood turning, pallet making, forest fire prevention and testing of firewood.

For measurements, push the pins into wood. The unique on-off switch between the pins, turns meter on automatically and bright LED lights instantly indicate moisture percentage.

• The green cap covers the pins during transportation and serves as a handle when pushing the pins into the wood
• Unique shape that fits comfortably in your hand when measuring & allows pushing behind the entire meter to insert the tapered pins easily
• Fits in your hand when measuring and is small enough to carry in a shirt-pocket
• Longer pins are stored inside the meter for measuring thicker material. The short pins are ideal for surface or end cut readings and for veneer.
• Measuring range low enough to check hardwood floors (6%)
• Measuring range high enough to evaluate wet lumber (45%)
• Bright, digital display readable even in dark crawl spaces
• Resolution of 0.1% below the critical moisture range of 10%
• 2 settings for wood species corrections

Specifications:

• Measuring range: 6-45%
• Resolution: 0.1% for values below 10% and 1% steps above 10%
• Species corrections: 2 settings for wood species corrections with LED indicator
• Calibration check: The calibration is internally checked and automatically adjusted if necessary
• Pins: 2 pair of pins, measuring depth of 3/16" and 7/16" (5,10mm)
• Size: pocket-size 2 3/4" x 5" x 1" (70 x 140 x 25mm)
• Weight: 8 ounces (200g), made out of high-impact plastic

Supplied with:

• Wrist strap
• Pouch
• (1) 9V battery
• (2) pair of pins
• 1 year limited manufacturer's warranty
