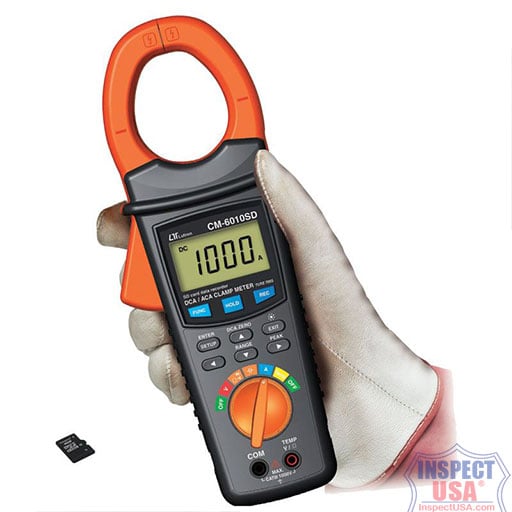

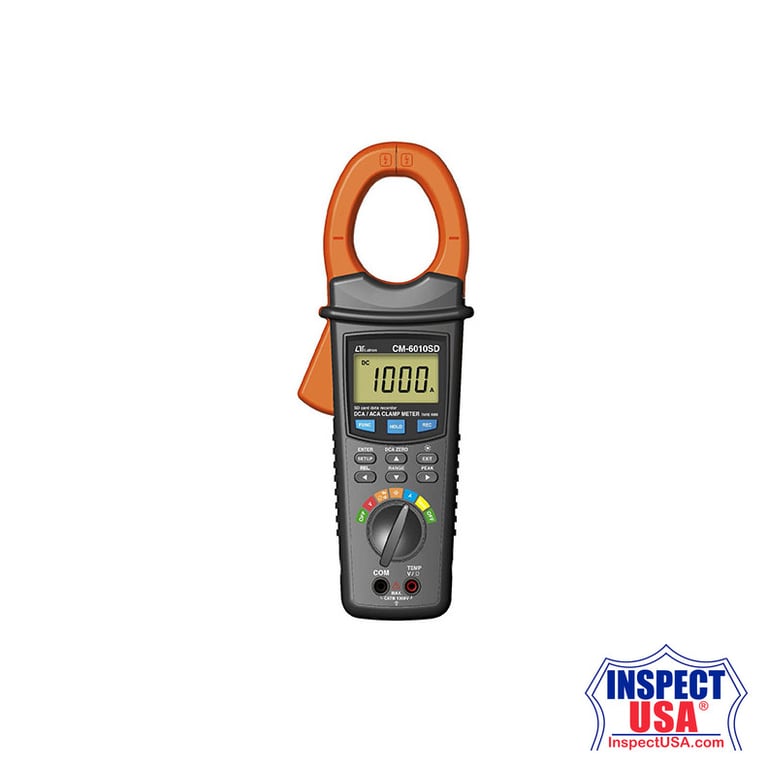

Lutron ACDC Clamp Meter (CM-6010SD) with 8GB MicroSD Card

Lutron CM-6010SD Clamp On Meter 2000 Amp AC/DC with micro-SD Card Datalogger & SD card adapter.

The Lutron CM-6010SD is a versatile tool equipped with a built-in micro-SD card reader for real-time data logging. It accurately records a range of data including the year, month, date, hour, minutes, and seconds. This device offers a variety of measurement functions including alternating current amperage (ACA), direct current amperage (DCA), alternating current voltage (ACV), direct current voltage (DCV), resistance, diode testing and continuity checking.

The CM-6010SD is designed for precision and convenience, featuring an auto-ranging function in its measurement capabilities. Its ACA and DCA ranges extend up to 2000 ACA/DCA, while the ACV and DCV ranges can measure up to 1000 ACV/DCV. The resistance measurement is also expansive, with a range up to 60 Megohm. For ACV and ACA measurements, it provides true rms measurements to ensure accuracy.

Safety is a priority with this device as it is rated for CAT III 1000V and CAT IV 600V. Additional features include a hold function, peak value measurement (maximum and minimum), and the ability to handle a 50 mm measuring conductor size. Its input impedance for ACV and DCV measurements is 10 Megohm. The device supports micro SD memory cards with a capacity ranging from 1 GB to 32 GB, providing ample storage for data logging.

• Record readings directly to Micro SD memory card - no need for software on the PC.
• True RMS measurement up to 2000 Amps AC/DC.

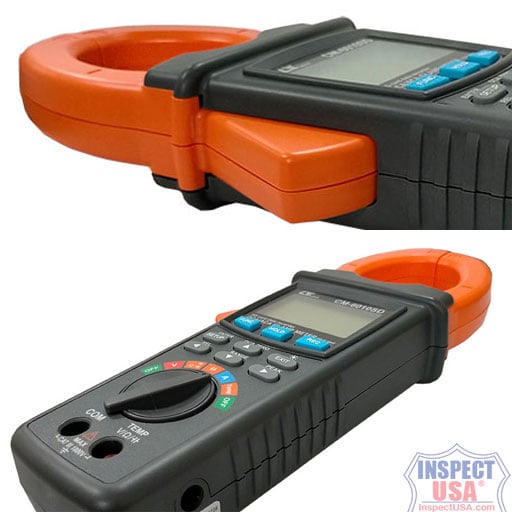

• 2.24" Jaw Opening.
• True RMS measurement of 1000 Volts AC/DC.
• Cat III 1000V CAT IV 600V.
• Resistance, Diode, Continuity, Frequency, Capacitance & Temperature (with optional temperature probe).
• Data Hold.
• Backlit Display.
• Real time data logger, save the data into the micro SD.
• Real time data logger, built-in clock ( year/month/date/hour minute/second ), sampling time can be set from 2 to 7200seconds.
• Measurement functions: ACA. DCA. ACV, DCV. Resistance, Diode, Continuity, Capacitance, Temp. ( optional Temp. probe ).
• ACA range: 0 to 2000 ACA, auto range.
• DCA range: 0 to 2000 DCA, auto range.
• ACV range: 0 to 1000 ACV, auto range.
• DCV range: 0 to 1000 DCV, auto range.
• Resistance range: 0 to 60 Megohm, auto range.
• True rms measurement for ACV, ACA.
• CAT III 1000V, CAT IV 600V.
• DCA zero button.
• Hold, Peak ( Max., Min. measuring value ).
• 50 mm measuring conductor size.
• ACV, DCV input impedance is 10 Megohm.
• LCD with backlight.
• Micro SD memory card capacity: 1 GB to 32 GB, micro SD card.
• Powered by DC 1.5V ( UM-3/AA ) x 2 PCs batteries ( Alkaline type ) or DC 9V adapter.
• RS232/USB computer interface.
• Operating Temperature: 32° F to 122° F (0° to 50° C).
  NOTE: most batteries are not rated for below -4° F or above 125° F.
• Operating Humidity: less than 80% RH non-condensing.
• Dimensions: 11" x 4.2" x 1.9" (280x106x47mm).
• Jaw opening: 2.24" (57mm).
• Weight: approximately 22oz (620g) with batteries installed.

Supplied with:

• Alligator clips LN-A37.
• Test Leads LN-S05.
• Carrying case CA-05B.
• 110v AC to 9v DC adapter AP-9V110.
• 8GB micro-SD card & SD card adapter.

Optional Accessories

• USB to 9v DC power cable USBP-59.
• Lutron Data Acquisition Software for Windows SW-U801-WIN.
• Lutron USB Data Acquisition Cable with Driver USB-01.
• Type K Temperature probe TP-11.
