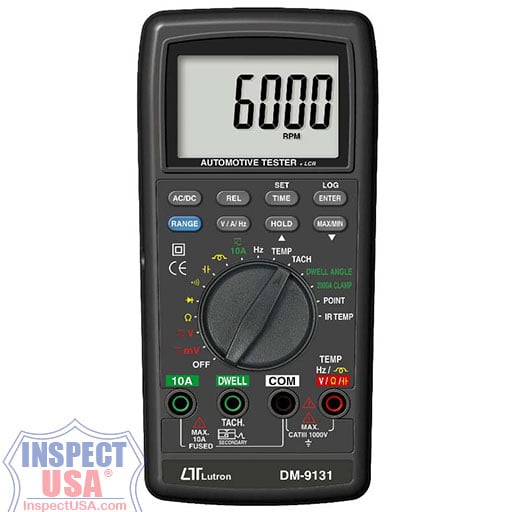

Lutron Automotive Tester (DM-9131) with Test Leads

Lutron Automotive Tester (DM-9131) with Test Leads

• Meets IEC 1010 CAT III 1000 V safety requirements.
• LCD with green backlight for easy reading.
• 6000 counts A/D for high resolution.
• Multi-function measurement: DCV, ACV, DCA, ACA, resistance, capacitance, inductance, frequency, temperature, diode, continuity beeper, TACH, DWELL, POINT, and 2000A clamp.
• Max. and Min. measurement values with recall function.
• Relative and data hold functions.
• Auto range with manual range selection available.
• Temperature measurement capability.
• VAHz button for frequency measurement when executing ACV or ACA functions.
• 10A and 6A current ranges with built-in fuses for safety.
• 10 M ohm impedance for voltage circuit.
• Operates on 9 V battery (006P, MIN1604).
• Built-in overload protection for most ranges.
• Photo couple RS232 computer serial interface.
• Durable and lightweight ABS-plastic housing.
• Optional adapters: clamp, tachometer, pressure, humidity, sound level, anemometer, light, EMF.

General Specifications

• Display: 60 mm x 39.5 mm large LCD.
• Measurement modes: DCV, ACV, DCA, ACA, resistance, diode, continuity, capacitance, inductance, frequency, temperature.
• 6000 A/D counts.
• Auto range with manual selection option.
• Relative measurement and data hold functions.
• Auto power off with manual power off option.
• Memory recall for maximum and minimum readings.
• RS232 PC serial interface via photo couple.
• Automatic polarity switching with "-" indicating negative polarity.
• Automatic zero adjustment.
• Sampling time: Approx. 0.5 to 1 second.
• Operating temperature: 0 to 50℃ (32 to 122℉), max 80% RH.

Power Supply

• Power source: 9 V battery (006P, MIN1604).
• Optional DC 9V adapter input.
• Power consumption: Approx. DC 7.0 mA.

Dimensions and Weight

• Dimensions: 190 x 88 x 40 mm (7.5 x 3.5 x 1.6 inches).
• Weight: 378 g (0.83 lbs) without battery.

Accessories Included

• Red and black test leads: 1 set.
• Instruction manual: 1 PC.

Optional Accessories

• Full line of adapters: ACA/DCA current, tachometer, humidity, pressure, light, EMF, sound level, high voltage probe.
• Holster: HS-03.
• Type K temperature probe: TP-11.
• Soft carrying case: CA-05A.
• RS232 cable: UPCB-06.
• RPM inductive pick-up sensor: IP-07, IP-08.

Electrical Specifications (23 ± 5℃)

• DC Voltage:
  • Range: 600.0 mV, 6 V, 60 V, 600 V, 1000 V.
  • Resolution: 0.1 mV to 1 V depending on range.
  • Accuracy: ±(0.5% + 2d) for 600 mV range; ±(0.8% + 1d) for other ranges.
• AC Voltage (True RMS):
  • Range: 600.0 mV, 6 V, 60 V, 600 V, 1000 V.
  • Resolution: 0.1 mV to 1 V depending on range.
  • Accuracy: ±(1% + 2d).
• Current (DCA/ACA True RMS):
  • Range: 6 A, 10 A.
  • Resolution: 0.01 A, 0.001 A.
  • Accuracy: ±(1.5% + 2d) for both DCA and ACA.
• Resistance:
  • Range: 600 Ω to 60 MΩ.
  • Resolution: 0.1 Ω to 0.01 MΩ depending on range.
  • Accuracy: ±(1% + 2d) to ±(3% + 5d) depending on range.
• Continuity beeper: Sounds if resistance is less than 20 Ω.
• Capacitance:
  • Auto range: 600 pF to 600 uF.
  • Resolution: 0.1 pF to 0.1 uF depending on range.
  • Accuracy: ±(1.5% + 5d) to ±(2.5% + 5d) depending on range.
• Inductance:
  • Auto range: 600 uH to 100 H.
  • Resolution: 0.1 uH to 0.1 H depending on range.
  • Accuracy: ±(1.5% + 5d) to ±(2.5% + 5d) depending on range.
• Frequency:
  • Range: 600 Hz to 20 MHz.
  • Resolution: 0.1 Hz to 0.01 MHz depending on range.
  • Accuracy: ±(0.5% + 2d).
• Temperature (with optional TP-11 probe):
  • Auto range: -100 to 1200℃.
  • Resolution: 0.1℃ to 1℃.
  • Accuracy: ±(1% + 1℃).
