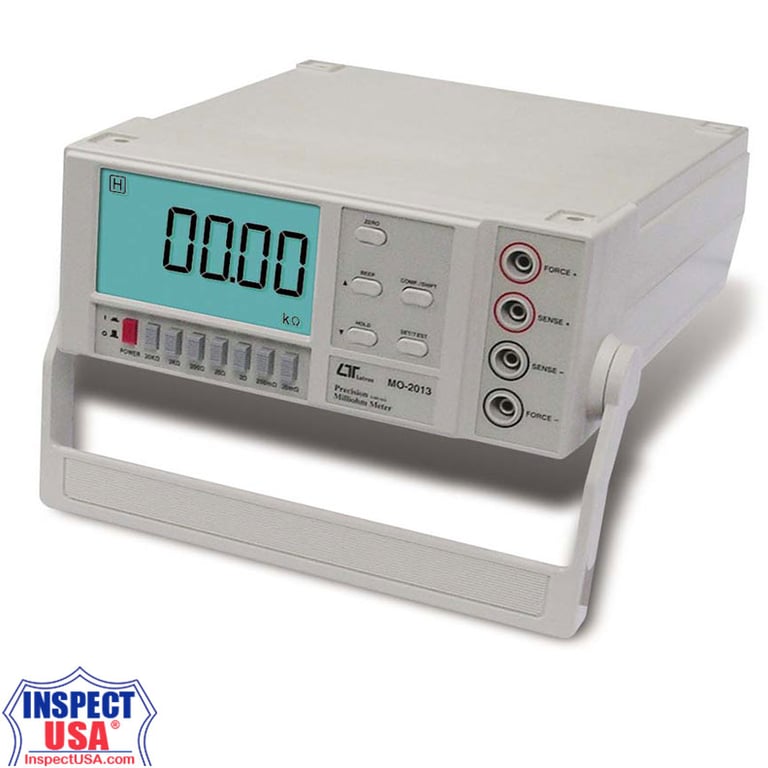

The MO-2013 High Precision Milliohm Meter offers accurate and reliable measurements for low resistance components, making it an essential tool for various applications in industrial environments and quality control.
Features of the MO-2013:
1. 4-Terminal Measurement: Ensures accurate measurement of very low resistance by eliminating lead resistance errors.
2. Wide Measuring Range: Measures resistance from 0.001 milliohms to 20 kilohms across seven ranges.
3. High/Good/Low Set-Function: Provides input quality control with an audible buzzer for good status.
4. RS232/USB Interface: Allows for data transfer to a PC for further analysis and reporting.
5. Built-In Calculate Function: Measures cable or wire length precisely.
Technical Specifications:
- Measurement Ranges:
- 20 mΩ, 200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ
- Resolution:
- 0.001 mΩ (20 mΩ range)
- 0.01 mΩ (200 mΩ range)
- 0.0001 Ω (2 Ω range)
- 0.001 Ω (20 Ω range)
- 0.01 Ω (200 Ω range)
- 0.0001 kΩ (2 kΩ range)
- 0.001 kΩ (20 kΩ range)
- Test Current:
- 1 A (20 mΩ, 200 mΩ ranges)
- 100 mA (2 Ω range)
- 10 mA (20 Ω range)
- 1 mA (200 Ω range)
- 100 μA (2 kΩ range)
- 10 μA (20 kΩ range)
- Accuracy:
- ± (0.2% + 12d) for 20 mΩ range
- ± (0.2% + 4d) for other ranges
- Display:
- 26.7 mm large size and back-light LCD display for easy readout
- Data Output:
- RS232/USB PC serial interface
- General Specifications:
- Operating Temperature: 0 to 50℃ (32 to 122℉)
- Operating Humidity: Less than 80% RH
- Power Supply: AC 110V ± 15%, 50/60 Hz or AC 230V ± 15%, 50/60 Hz
- Power Consumption:
- AC 110V: Approx. 33 mA
- AC 230V: Approx. 15 mA
- Dimensions: 280 x 210 x 90 mm (11.0 x 8.3 x 3.5 inches)
- Weight: Approx. 2.04 kg (4.49 lbs)
Included Accessories:
- Standard Power Cord (1 PC)
- 4-wire with 2 Kelvin Clips (1 Pair)
- Instruction Manual (1 PC)
Optional Accessories:
- RS232 cable UPCB-02.
- Lutron Data Acquisition Software for Windows SW-U801-WIN.
- Lutron USB Data Acquisition Cable with Driver USB-01.
Versatile Applications:
Ideal for measuring the resistance of components precisely, testing protective conductors, lightning conductors, and welded points. It is suitable for use in quality control and industrial environments where precise low resistance measurements are required.
