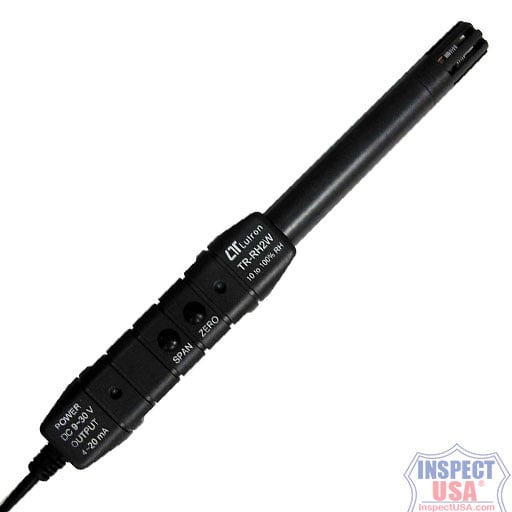

Lutron Humidity Transmitter (TR-RH2W) 2 Wire

Lutron Humidity Transmitter (TR-RH2W) 2 Wire

The TR-RH2W is a 2-wire humidity transmitter designed for precise and reliable monitoring of humidity levels. It features a high-precision capacitive sensor with a 4-20 mA output, making it suitable for integration with various controllers, alarms, and indicators for remote humidity monitoring. With a measuring range of 10% RH to 95% RH, it offers durable operation under different environmental conditions. The device can be powered through its signal wiring, ensuring a simplified setup and robust performance in industrial and environmental monitoring applications.

• Measuring range: 10 %RH to 95 %RH.
• Output: 4 to 20 mA, where 10 %RH = 5.6 mA, 50 %RH = 12 mA, and 95 %RH = 19.2 mA.
• 2-wire configuration for both signal and power supply.
• High precision capacitive humidity sensor.
• Compatible with 4-20 mA controller/alarm/indicator (e.g., CT-2012) for remote monitoring and control.

Specifications

• Power supply: DC 9V to 30V, protected against reverse polarity.
• Adjustment: External ZERO and SPAN VR.
• Accuracy:
  • ≥ 70 %RH: ±(3% of reading + 1% RH).
  • < 70 %RH: ±3% RH.
• Load impedance requirement: Up to 500 ohms.
• Operating temperature: 0 to 50℃ (32 to 122℉).
• Operating humidity: Less than 95% RH.
• Dimensions: 200 x 23 x 19 mm (7.9 x 0.9 x 0.7 inches).
• Weight: 75 g (0.16 lbs).
• Cable length: Approx. 1.2 meters.

Wire Connection

• Red: Power + and signal.
• Black: Power -.

Accessories Included

• Operation manual: 1 PC.
