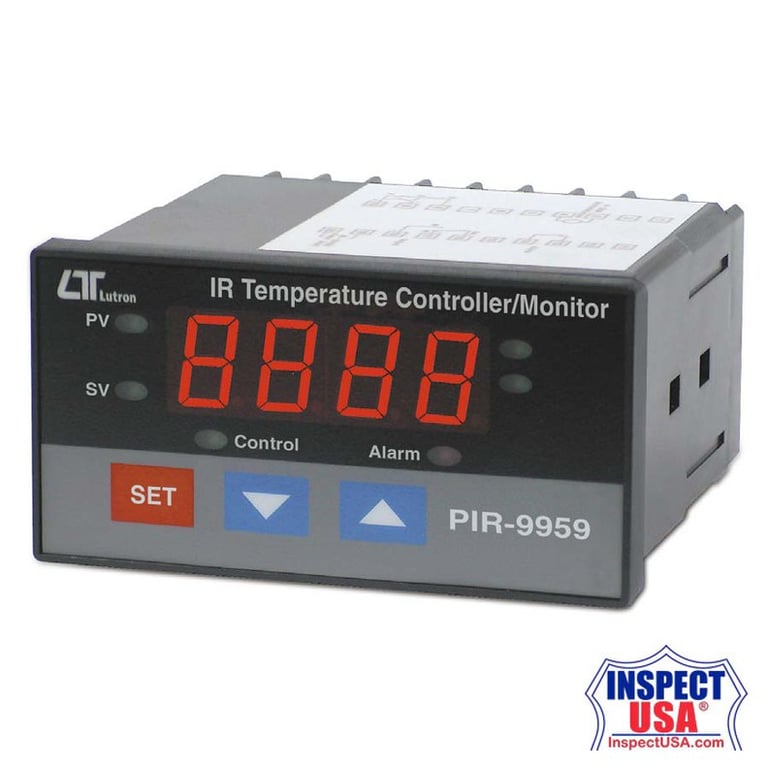

Lutron IR Temperature Controller/Monitor (PIR-9959A)

Name: Lutron IR Temperature Controller/Monitor (PIR-9959A)
Brand: Lutron Instruments
SKU: 3202
Availability: OutOfStock
Rating: 5.00 (111 reviews)

Model #: PIR-9959A

Condition: New

0 Reviews
Be the first to review this product

Print This Page

Have a question?

Available to Order

Lutron IR Temperature Controller/Monitor (PIR-9959A)

Item may vary slightly from image.

Available to Order — not on our shelf yet, but we can get it for you. Email us for price & lead time. All Available-to-Order items »

Special-order item — delivery times vary with manufacturer availability. Use the Contact button below for a current ETA and any available discounts. Please include your shipping address and the quantity you plan to order.

Contact Us For Ordering Information

Lutron IR Temperature Controller/Monitor (PIR-9959A)

Infrared temperature.

Features:

Input : 4-20 mA DC, 4 mA = 0.0 ℃ or 4 mA = 32 ℉ 20 mA = 300.0 ℃ or 20 mA = 572 ℉
User can default the Temp. unit to ℃ or ℉.
User can default the resolution of Temp. value to 0.1 degree or 1 degree.
When PIR-9959 cooperate LUTRON's 4 to 20 mA IR Temp. transmitters ( TR-Ir420 ) , whole system will become the high performance Controller/Alarm/Indicator of no contact IR Temp. measurement system.
Easy to adjust the function factors by push button on the front panel.
Control output : 2 points ( COM, NO ).
Alarm output : 2 points ( COM, NO ).
Control Relay will make action when the reading value reach to control value.
Hysteresis value setting for control and alarm function.
Large red LED display, high brightness and easy to read.
Microprocessor circuit ensures high accuracy and provides special functions and features.
DC 24V power supply output, used for the power supply external IR Temp. transmitter.

Link to the technical data sheet that is provided for this Lutron Meter

Lutron Certificate of Calibration Lutron Instruments & Solutions arrive brand new from Lutron with this factory calibration certificate enclosed. Until our chain of custody is broken we are certain and guaranty that every meter meets this standard at the time of shipment. InspectUSA would need to ship the new meter directly to your NIST lab, with our guaranty that it would meet NIST standards. We must ship the instrument direct to an approved NIST lab for this guaranty to be applicable. Once the chain of custody is broken for whatever reason, this guaranty is no longer valid.

ISO-9001 Certification
