Mini ACA 20/ 200A Clamp Adapter (CA-201) For Digital Multimeters

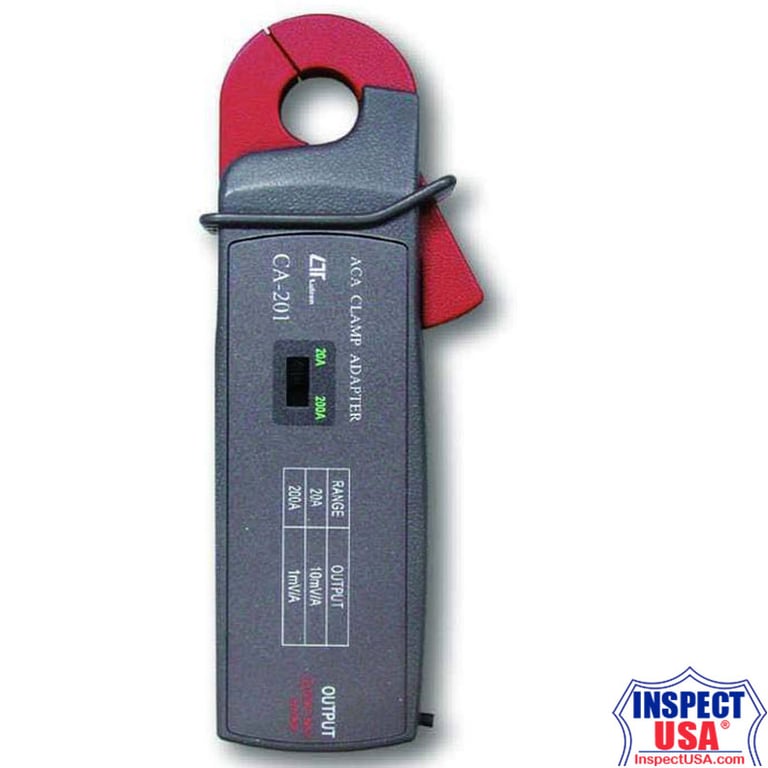

Lutron Mini ACA Clamp Adapter (CA-201) 20/ 200A

The Lutron CA-201 is a compact ACA clamp adapter designed to extend the current measurement capability of any compatible DMM. With two selectable ranges, the CA-201 provides safe, isolated current measurement without requiring direct electrical contact. Its miniature jaw design allows easy use in tight locations while delivering precision output for use with meters that have 200 mV ACV or 2 V ACV ranges.

• Miniature clamp design: Ideal for measuring current in tight or crowded wiring spaces.
• Two selectable ranges: 20 A and 200 A for versatile measurement applications.
• Linear output scaling: 10 AC mV per 1 ACA on the 20 A range; 1 AC mV per 1 ACA on the 200 A range.
• High accuracy: ± (1.2 percent plus 0.5 AC mV).
• No batteries required: Operates entirely from inductive sensing.
• Compatible with ACV meter ranges: Works with ACV 200 mV or ACV 2 V input for precision current measurement.
• Suitable for field service, electrical diagnostics, and load checks.

Specifications

• Measurement Ranges: 20 A and 200 A ACA.
• Output Scaling: 20 A range: 10 AC mV per 1 ACA. 200 A range: 1 AC mV per 1 ACA.
• Accuracy: ± (1.2 percent plus 0.5 AC mV).
• Power Supply: None required.
• Dimensions: 180 × 47 × 35 mm (7.09" × 1.85" × 1.38").
• Weight: 150 g (0.49 lb.).
• Applications: Works with DMM ACV ranges (200 mV or 2 V) to act as a precision clamp meter.

Included Items

• CA-201 clamp adapter.
• Instruction manual.

Optional Components

• Compatible DMM models supporting 200 mV or 2 V ACV input.
• Carrying case for field service protection.
• Extension leads for extended reach in tight installations.
