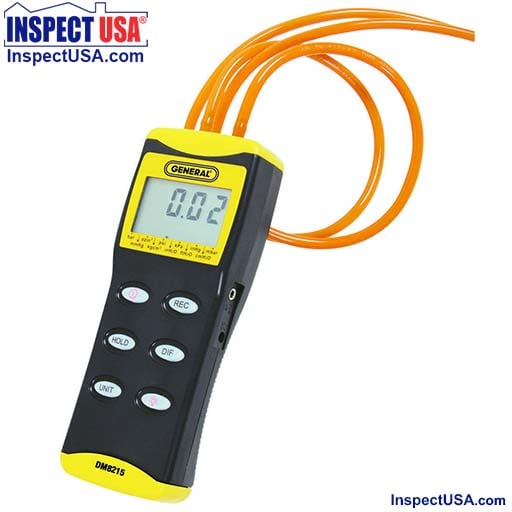

Manometer Digital, 415" WC [-15 to 15 psi] (DM8215) RS232 Output

• Digital display of:
  • Gauge pressure (measures pressure in psi that is referenced to ambient pressure)
  • Differential pressure (measures the difference of 2 pressures)
• Select from one of 11 pressure units of measure:
  • psi
  • inH₂O
  • bar
  • mmHg
  • ozin²
  • kgcm²
  • kPa
  • ftH₂O
  • inHg
  • cmH₂O
  • mbar
• Bright backlight LCD display
• Data hold & record features
• RS-232 data port
• Min/max button
• Simple fittings for hose connection
• Auto power off & low battery indicator
• Ideal for medical equipment, computer peripherals, pneumatic controls, HVAC and more

Specifications:

* inches of Hg (mercury) is at 60°F

• Accuracy: ±0.3% of full scale at 77 °F
• Dimensions: 2.83” x 7.16” x 1.18”
• (1) + positive & (1) - negative port
• (2) 4.8mm hose connection lugs
• Response time: 0.5 sec
• Power: 9v Alkaline (can use optional power supply)

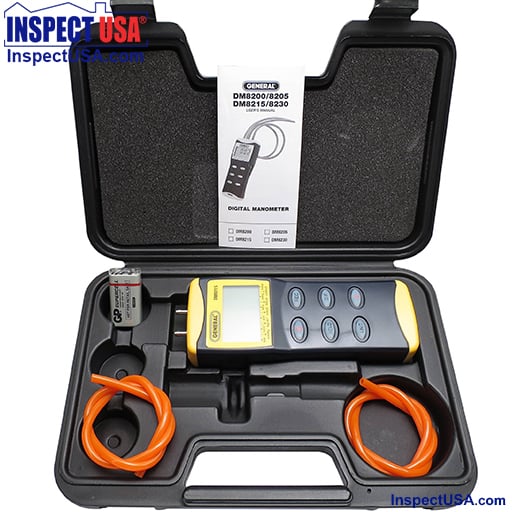

Supplied With:

• (2) Connection hoses: (4mm (ID) x 6mm(OD); approximately 1000mm long
• Hard carrying case
• Instruction manual
