Reference only — this item is no longer available. This product has been discontinued and cannot be ordered. We keep the page online so the specifications and documentation stay available to anyone still running the equipment. Current replacements are listed further down.

Discontinued

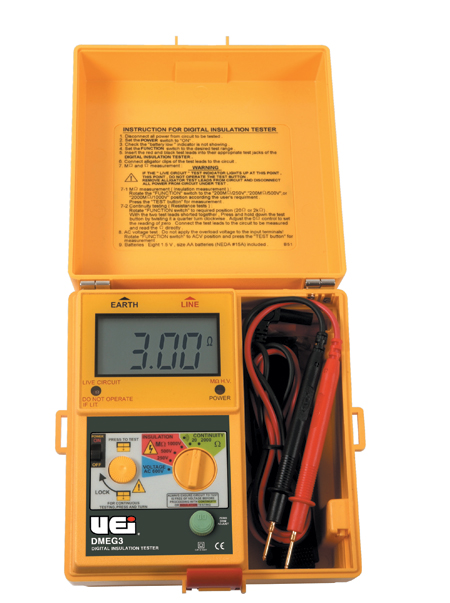

Megohmmeter: Digital Insulation Resistance Tester (DMEG3) with Case

Reference only — not for sale

Model	DMEG3
Manufacturer	UEI
Category	Power Testers
Status	Discontinued

Browse all Power Testers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The DMEG3 Megohmmeter allows you to predict, prevent and identify insulation failures that can cause appliance failure, stop production, create power problems and even put lives at risk. It quickly tests insulation integrity on motors, power distribution systems and other installed wiring. Three year limited warranty.

Features
• Large digital display shows the test function and measured value
• 600V AC measurement capability
• Insulation resistance ranges 0 - 2000 M ohms
• Three test-voltage ranges (250, 500, 1000 V DC)
• Live circuit warning light
• Fuse protected
• Precision resistance 0.01 ohms with audible continuity
• 200 mA short-circuit continuity test current for high accuracy
• Precision, low resistance test leads (1000 Volts CAT III rated)
• Audible continuity
• Green LED power-on indicator
• Low battery indication / detection
• Maintains rated voltage on cables with up to 1 mA leak-rate
• Automatic, post-test cable discharge
• Rugged, compact case with protective cover
