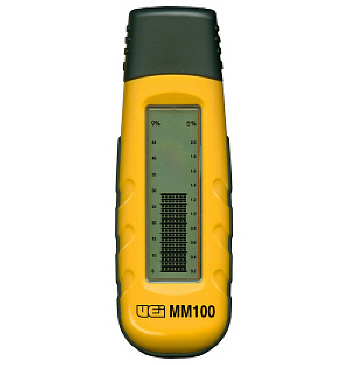

Digital Moisture Meter 6-44% (MM100) with Bar Graph & Dual Mode LCD

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The MM100 is used to measure the moisture level in wood, cardboard and paper as well as in hardened material such as plaster, concrete, mortar and more.

Features:

• Dual LCD display with bar graph
• Removable cap turns instrument on when removed
• Protective cap includes measurement verification
• Display has 2 scales based on the material being measured
• Over-range indication
• Battery check test & indicator
• Replaceable electrodes
• Built-in belt clip
• Ruggedized design
• Auto power off (after approx 15 minutes)

Specifications:

• Range:
  • Wood: 6 ~ 44%
  • Material: 0.2 ~ 2.0%
• Accuracy:
  • Wood: ±1%
  • Material: ±0.05%
• Electrode pin length: 5/16" (8mm)
• Operating range temperature: 32 ~ 104˚F (0 ~ 40˚C)
• Operating relative humidity: 0 ~ 85%
• Power: (3) CR2032
• Dimensions: 5½" x 2" x 1" (139x47x25mm)
• Weight: 0.22 lb (100g)

Supplied with:

• Spare set of electrode pins
• One year limited warranty
• Battery

Download Users Manual (PDF format)
