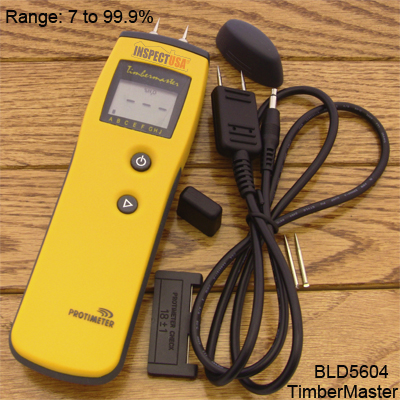

TimberMaster Moisture Meter 7-99% (BLD5604) w/External Probes

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The Protimeter Timbermaster is a compact digital moisture meter specifically designed for the timber industry. It is ideal for a range of quality control applications associated with the production, trading and use of wood products. It has eight calibration scales, enabling the user to take accurate moisture measurements in 150 wood species. When necessary, it can be used with a temperature probe that automatically corrects the measured moisture level with respect to the temperature of the wood being tested (especially useful for extreme temperature differences). This meter can also be used for plaster, concrete, gypsum, OSB and any other materials that would be measured with a pin-type moisture meter.

• All readings are displayed on a large LCD display
• May be used with optional hammer electrode for sub-surface measurements
• Built in wood calibration scales
• Automatic temperature correction (requires optional temperature probe BLD5059)
• Durable and rugged design

Specifications:

• Range: 7 to 99.9%
• Accuracy: ±1% at 68° F when used with temperature probe & proper species mode
• Resolution: 0.1%
• Display: LCD
• Weight: .330 lbs. (without batteries)
• Dimensions: 7.02" x 1.09" x 1.91"
• Power: (2) "AA" alkaline batteries (included)

Supplied with:

• Timbermaster Digital Pin-Type Meter
• External (2 pin) probe (BLD5079)
• 'Calcheck' WME mode calibration check tool (BLD5086)
• Carrying pouch with belt loop & Velcro flap
• Wood calibration chart
• Instruction manual
• (2) 1" replacement pin needles
• (2) "AA" alkaline batteries
• 2 year parts and labor warranty

Download Owners Manual (approx 800kB)

Download Wood Calibration Cross reference Guide (approx 94kB)
