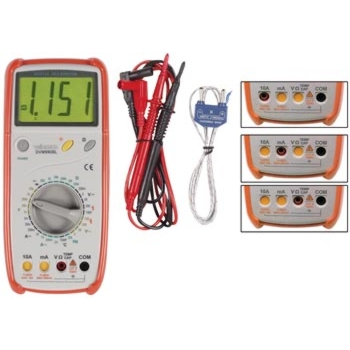

Multimeter: 1000vDC 700vAC (DVM990BL) with PROTECTION

Reference only — not for sale

Model	DVM990BL
Manufacturer	Velleman
Category	Power Testers
Status	Discontinued

Browse all Power Testers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Multimeter: 1000vDC 700vAC (DVM990BL) with PROTECTION

Features

big LC display with backlight
low-battery indication, overload protection
diode and audible continuity test
DC current max. 10A, DC voltage max. 1000V
AC current max. 10A, AC voltage max. 700V
resistance measurements: max. 20Mohm
capacitance measurements: max. 20µF
frequency measurements: max. 20kHz
temperature test range: -4°F to 1832°F
with backlight and data-hold function
holster included
plug-in protection: the corresponding input is opened for each selected range

Specifications

DC voltage: 200m/2/20/200/1000V
- basic accuracy: ± 0.5%
- input impedance: 10Mohm
- maximum input: 1000V
AC voltage: 200m/2/20/200/700V
- basic accuracy: ±1.2%
- input impedance: 10Mohm
- frequency range: 40-400Hz
- maximum input: 700V
DC current: 2m/20m/200m/10A
- basic accuracy: ±1.0% (±2.0% for 10A range)
- overload protection: F1 (F 200mA/250V) for 2mA to 200mA range / F2 (F 10A/250V) for 10A range
AC current: 2m/200m/10A
- basic accuracy: ±1.2% (±3.0% for 10A range)
- overload protection: F1 (F 200mA/250V) for 2mA to 200mA range / F2 (F 10A/250V) for 10A range
resistance: 200/2k/20k/200k/2M/20M
- basic accuracy: ±1.0% (±5.0% for 200M range)
- overload protection: 250V
capacitance: 2n/20n/200n/2µ/20µF
- accuracy: ±4.0%
inductance: -
- accuracy: -
frequency: 20kHz
- basic accuracy: ±1.5%
- overload protection: 250V
temperature: -4°F to 1832°F
- basic accuracy: ±1.0%
over range: yes "1"
continuity buzzer: yes
transistor test: no
diode test: yes
low-battery indication: yes
maximum display: 1999 (3 1/2)
LCD display size: 1.1"
ranging mode: manual
data hold: yes
backlight: yes
dimensions: 7.5" x 3.2" x 1.4"
weight (with battery): approx. 9.9oz
power supply: 9V-battery (incl.)
packing: -
accessories: manual / test leads / battery / K-type thermocouple
auto power-off: no
