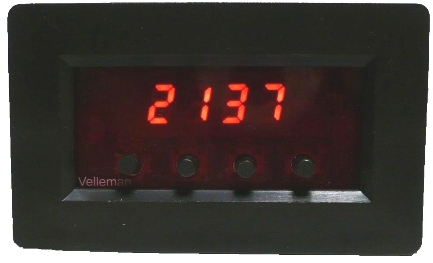

Panel Module: Red LED Counter 0-9999 (V-VM147) BLACK 2.63" x 1.6"

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Features:

• Red LED display
• 2 inputs: counts up or down
• counting through external pulses or push buttons
• memory function constantly compares the current value with a preset value and activates an output for as long as both are equal or for an adjustable time
• debounce function for stable operation (with low counting frequencies)
• adjustable 'preset': 0000 to 9999
• auto reset when preset value is reached when counting up
  • example if preset= 5: 0000 > 0001 > 0002 > 0003 > 0004 > 0005 > 0000 > 0001 > 0002 > 0003 > 0004 > 0005 > 0000 > 0001 ….
• auto 'load preset' mode when counting down
  • example if preset = 6: 0006 > 0005 > 0004 > 0003 > 0002 > 0001 > 0000 > 0006 > 0005 > 0004 > 0003 > 0002 > 0001 > 0000 > 0006 ….
• comes with board-to-wire connectors (20cm wire)
• very practical for counting parts, people, scorekeeping

• counter input: dry contact, connecting to ground
• 'equal'- output: max. 100mA (@ max. 30V) 'open-collector' output
• max. counting speed: 400 / sec. (10 / sec. with debounce delay)
• max. count: 4 digits (0000 to 9999)
• output pulse length: 100 to 900ms or 'as long as equal'
• power supply: 9 to 12VDC (unregulated)
• power consumption: 2 41/64" x 1 19/32"
• dimensions:
  • panel module: 2.63 x 1.6"
  • cut-out: 2.12 x 1.45"
  • mounting depth: 1.65"

Non-stocked item. Please allow 7 to 10 days for delivery.
