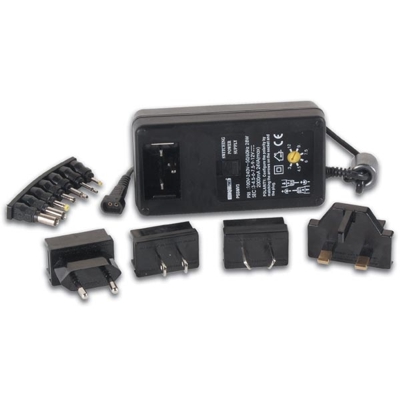

Power Converter 120-240vAC to 3, 4.5, 6, 7.5, 9 or 12vDC (PSSMV3)

Reference only — not for sale

Model	PSSMV3
Manufacturer	Velleman
Category	Power Adapters
Status	Discontinued

Browse all Power Adapters Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Power Converter 120-240vAC to 3, 4.5, 6, 7.5, 9 or 12vDC (PSSMV3)

State-of-the-art switching power supplies and feature some major advantages such as:
- cooler running
- stabilized output
- short-circuit and overload protection
- compact design
- very low idling consumption
Get rid of those bulky power-hungry heat-producing mains adapters.
Reversible plug to easily change the polarity
Thermal cut-off
7 different DC plugs can be mounted
Input voltage: 100 - 240vAC 50/60Hz
Power: 24.0W max.
Efficiency: >= 70%
Selectable output voltage: 3, 4.5, 6, 7.5, 9 and 12vDC
Output current: 2000mA
Works with typical main power plugs: USA, UK, Europe, Taiwan or China
Dimensions: 4.6" x 2.4" x 3.3"

Supplied AC plugs: USA, UK, Europe, Taiwan or China
Supplied DC plugs:
- 0.75x2.35
- 2.5
- 3.5
- 1.35x3.5
- 1.7x4.0
- 2.1x5.0
- 2.5x5.5mm

Download Schematic (PDF format)
