Probe: Soft Metal 3m Articulating Shaft (P18ART-3SM) for DCS1800

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

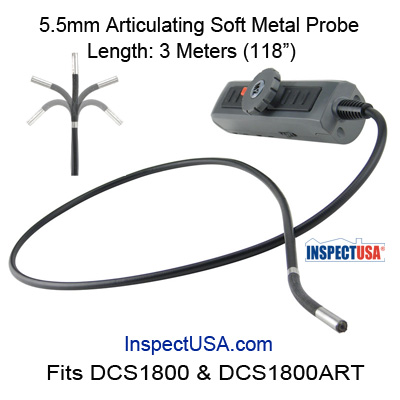

Articulating, 118" soft-metal probe for DCS1800 & DCS1800ART.

• Ideal for aircraft maintenance, machinery and production line inspection, petro-chemical and power plant inspection, general MRO and facility management.
• One-handed articulation function allows user to turn the probe tip to inspect targets located at sides or at an angle while it is inside a tight space.
• Turning knob and lock-button are ergonomically-engineered, and offer one-handed easy control to the probe tip to view targets from ideal angle
• Durable material and construction: all components pass 60,000 cycle test
Camera System & Insert Tube:
• Diameter of Insert tube: 0.2" (5.5mm)
• Resolution: 325 (H), 250 (V)
• Housing: Steel
• Light Source: White LED
• Length: 118" (3m)
• Field of View:
• Horizontal field angle 46°
• Vertical field angle 34°
• Diagonal field angle 56°
• Depth of Field (DOF): 0.4" to 2.4" (1cm to 6cm)
• Water Resistance: Insert tube
• Working Temperature: 32° to 131°F (0° to 55°C)
