Protimeter HygroMaster Concrete Test Kit (BLD7705-2) 75mm Sleeves

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Protimeter Concrete Testing Floor Kit complete with (20) 12 x 75mm reusable Floor Sleeves, extension lead and HygroStick

This method can be used to carry out the ASTM F2170-02 Standard test method for determining relative humidity in floor slabs using IN SITU probes. Way more convenient and much quicker than the old fashioned Calcium Chloride testing.

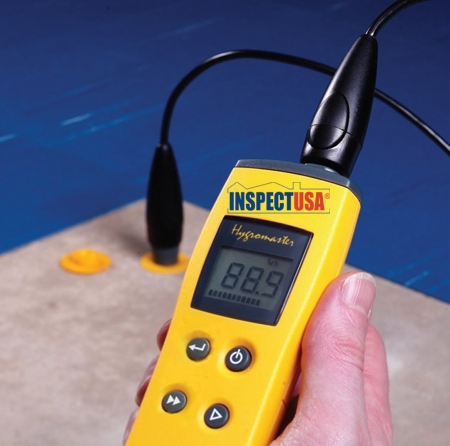

The Protimeter HygroMaster is an easy to use hygrometer with built in data logging capability. The HygroMaster is a hand-held instrument for taking spot measurements and for logging humidity and temperature values. Quick measurements of relative humidity, dew point, mixing ratio (grains per pound/parts per million by weight) and ambient temperature are shown on a split display at the touch of a button. Surface temperature measurements can also be measured with an optional surface temperature sensor, making this instrument especially suitable for condensation risk assessment and diagnosis.

• Versatile hygrometer that measures humidity, air temperature and Dew Point
• Excellent for taking spot measurements and for logging humidity and temperature values
• measurements of relative humidity, dew point, mixing ratio and ambient temperature are shown on a split display at the touch of a button
• Surface temperature measurements can also be measured with an optional surface temperature sensor
• Especially suitable for condensation risk assessment and diagnosis
• The HygroMaster has a data-logging mode to meet this requirement. The user sets the instrument to record measurements as required and leaves it in place for the required period of time. The memory contents are then downloaded to a PC using optional software where the logged measurements are displayed in tabular and graphical form.
• Nominal measurement range: 30 to 100% RH
• %RH Accuracy: In the range of 30 to 40% is approximately ±2.5%RH
• %RH Accuracy: In the range of 41 to 98% is approximately ±1.75%RH
• Temperature measurement range: 15 to 120°F (-10 to 50°C)
• Power: (1) 9v battery

Download User Manual (PDF format)

Supplied with:

• 1 Protimeter Hygromaster (BLD7700)
• 1 HygroStick (POL4750)
• 1 HygroStick extension lead (BLD5802)
• 20 humidity sleeves (BLD4750HS)
• Detailed illustrated instructions
• 9v Alkaline Battery
• One year manufacturer's warranty

Optional:

• Surface temperature probe (BLD4701)
• Protimeter QuickStick (POL8750)

BLD7705-2 Floor Kit (instructions link)
