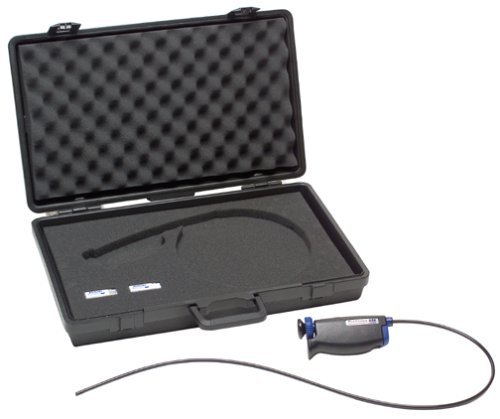

Provision Fiber Optic Scope 0.4" x 96"

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

This ProVision flexible fiberoptic scope is made possible by the use of thousands of tightly packed plastic fibers aligned coherently – both ends are positioned exactly the same relative to each other. This coherent bundle of fibers transfers high quality images from a fixed object to a focusable eyepiece assembly. When activated, light from a source in the handle travels via a continuous light guide down the cable to the tip of the scope to illuminate the viewing area. Although the cable is filled with fibers, it can be bent repeatedly to a radius of 8 inches without damage

Features:

• High resolution lens provides a clear image of objects as close as ¾" and over 1' away while providing a wide 40° field of view.
• A powerful lamp illuminates dark crevices on demand with the push of a button conveniently located on the handle.
• ergonomically designed handle is comfortable to hold and allows one-handed focusing and light activation.
• Rugged & water resistant
• Made of high impact ABS and flexible cable sheathing that obediently stays in a set position.
• Adjust the cable into any position and it will stay fixed in place, until you decide to change it
• Cable will reach deep into walls, drains, vents, engine blocks, etc.
• Powerful halogen lamp illuminates dark locations for clear viewing
• "Obedient" cable maintains its fixed position until readjusted
• Flexible, omni-directional cable bends in every direction to allow precise viewing
• Pressure activated light switch is conveniently located but cannot be accidentally left "on"
• Integrated focus ring for smooth, continuous focusing
• Ergonomically designed, non-slip handle fits comfortably in one hand

Specifications:

• Cable length: 96" (914.4mm)
• Cable diameter: 0.4" (10.5mm)
• Cable type: obedient
• Field of view: 40°
• Optimal viewing distance:
  • Minimum: 0.8" (20mm)
  • Maximum: Dependent upon ambient lighting conditions
• Lamp: 2.7v halogen
• Power source: 2 "AA" batteries (not included)
• Operating & storage temperature : -10° to 120° F
• Operating pressure:
  • Average: 2.9 p/psi
  • Maximum: 3.2 p/psi
• Handle dimensions: 6" x 1.4" x 2.4"
• Overall Weight: 18 oz (504g)
