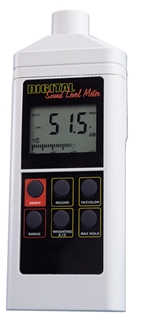

Sound Level Meter Digital 40-130 dB (DSM8928) with Bar Graph & A/C

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Measure sound level from 40 to 130dB with this easy-to-use, straightforward, sound level meter. This conveniently designed sound meter is ideal for field use as it features: a tripod mount, analog output connector to link to chart recorders or dataloggers, large LCD display, MAX hold button and is one-handed user-friendly. With selectable weighting (‘A' or ‘C') and response time (fast or slow), and a LCD display that is 3 1/2 digit (0.1dB resolution) providing a 30 segment analog bargraph-you'll have all the sound level measurement features you need at the right price.

Applications:

Identify noise ordinance violations, traffic noise measurements, community noise measurements, theater acoustic studies, stereo balancing.

Features:

• Tripod mount and 9V battery powered, ideal for field use
• Analog output for connection to chart recorders, dataloggers, etc.
• Selectable weighting (‘A' or ‘C') and response time (Fast or Slow)
• MAX HOLD front-panel select switch locks highest reading on the display
• 30-segment analog bargraph
• Measure sound level from 40 to 130dB
• Built-in 1" Electret Microphone for convenient one-hand operation

Specifications:

• Sound Level Range: 40 to 130dB
• Resolution: 0.1dB
• Display: 3-1/2 digit LCD display
• Accuracy: ±2dB @ 94dB, 1000Hz
• Weighting: 'A' and 'C' (selectable)
• Response time: FAST and SLOW (Selectable)
• Microphone: Electret, Condenser type; diameter 10mm
• Analog output: AC, 0.707Vrms (at full scale)
• Power Supply: 9v battery (included)
• Dimensions: 2.8" x 7.2" x1.2" (72 x 182 x 30mm)
• Weight: 4.8 oz. (150 g)
