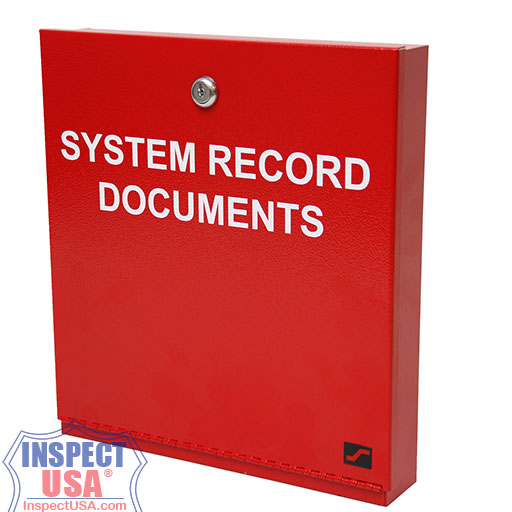

Steel Systems Documents USBC Box (SSU00689) Red 12"x13"x2.25"

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Systems Record Documents Box (SSU00689) Red 12"x13"x2.25" Steel with USB-C port

Store important system documents in a secure location with a cabinet built specifically to meet the requirements of NFPA 72 7.7.2.4.

NFPA 72 7.7.2.1 states, “With every new system, a documentation cabinet shall be installed at the system control unit or other approved location at the protected premises.”

The SRD includes our innovative 8GB flash drive slide tab that allows the user to select a USB-C or Micro USB connector to access records electronically (See NFPA 72 7.5.6.7).

• 18 gauge cold rolled steel construction with red or black powder coat and white lettering
• Dimensions are 12” wide x 13” tall and 2 1/4” deep
• Stainless steel piano hinge with CAT30 door lock
• Two key ring hooks to hold system keys
• Business card holder for key contacts
• Slide tab allows user to select USB-C or Micro USB connector to download from 8GB digital flash memory

Installation Procedure

1. Remove from packaging and open box.
2. Place back box on wall where it is to be mounted and mark the location of holes to mount box to the wall.
3. Drill appropriate size holes in wall for appropriate mounting screws being used, (screws not supplied).
4. Mount back box to wall with appropriate hardware (not supplied).
