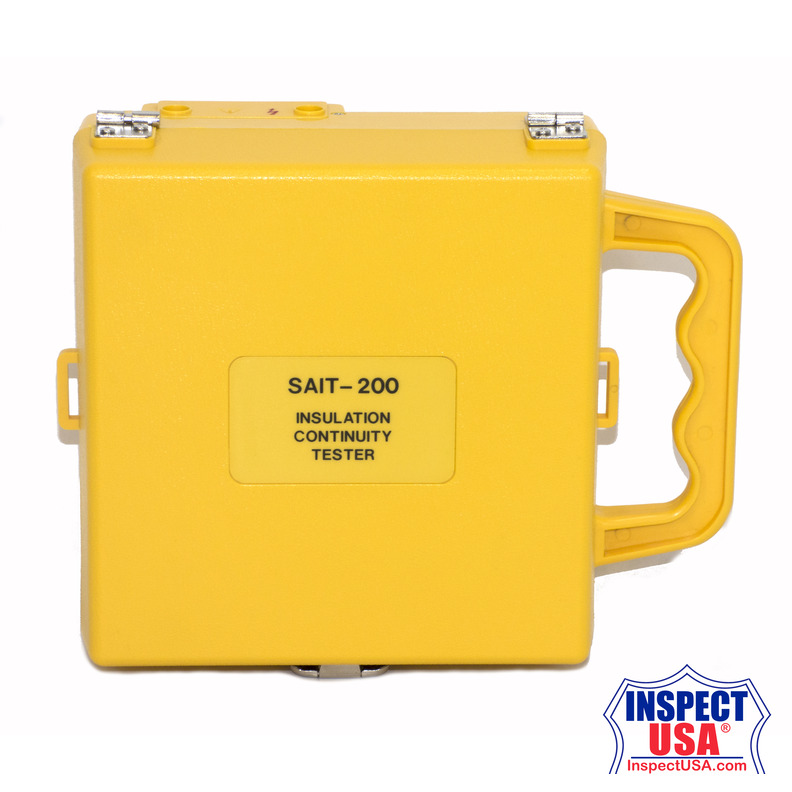

TPI Analog Insulation Resistance Tester (SAIT200)

TPI Analog Insulation Resistance Tester (SAIT200)

Model SAIT200 Analog Insulation Resistance Tester (IRT) with large scale. Check compressor, transformer, and motor windings for insulation breakdown.

TPI Insulation Resistance Testers are ideal for preventative maintenance and performing resistance tests. All TPI Insulation Resistance Testers include A085 UL listed silicone test lead set with screw on alligator clips and A073 test lead set with large alligator clips.

All TPI Insulation Resistance Testers are:

• Test Voltages: 250V/500V/1,000V.
• Insulation Resistance: 100MΩ/200MΩ/400MΩ.
• Continuity: 2Ω/20Ω.
• Includes A085 UL listed silicone test lead set with screw on alligator clips and A073 test lead set with large alligator clips.

Specifications

• Insulation Measuring Ranges: 100MΩ / 200MΩ / 400MΩ.
• Test Voltages: 250V / 500V / 1000V.
• Basic Accuracy: +/-5%.
• Low Resistance Range: 2Ω / 20Ω.
• Basic Accuracy: +/-3%.
• AC Voltage Range: N/A.
• Display Type: Analog scale.
• Backlight: Yes.
• Live Circuit Warning: Audible / Visual.
• Power Supply: Battery (1.5V x 6).
• Fuse Protected: Yes (continuity range only).
• Category: CAT III 600V.
