TPI Digital Clamp Meter Amp Plus (TP-293)

Coming soon

Model	TP-293
Manufacturer	TPI
Category	Clamp Meters
Price	$135.54
Status	Coming soon

Ask about availability Browse all Clamp Meters

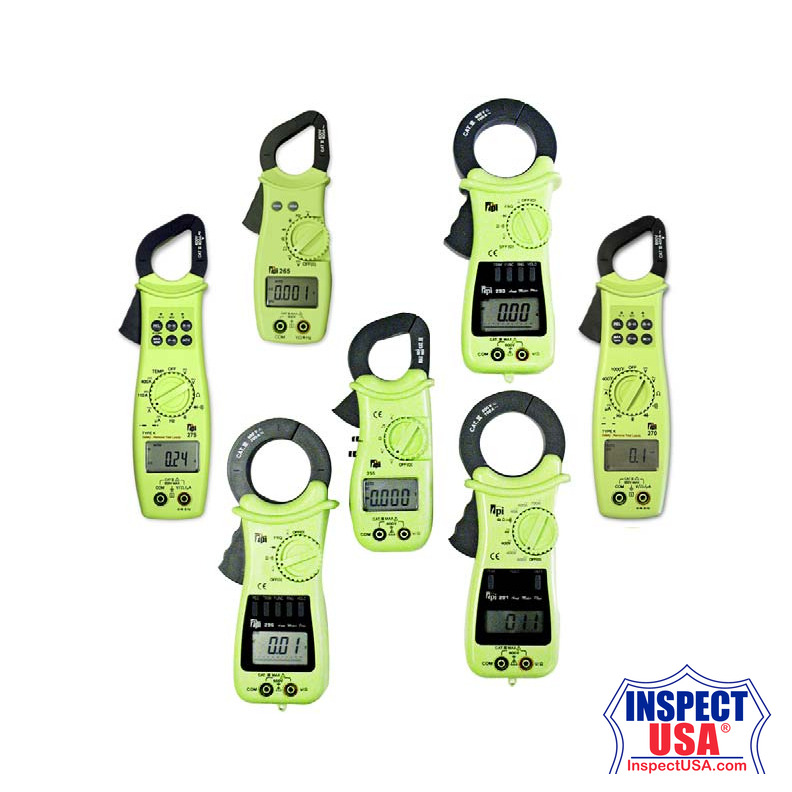

TPI Digital Clamp Meter Amp Plus (TP-293)

Digital Clamp Meter Amp Plus. The 293 is a clamp plus digital multimeter with True RMS capabilities.

The 293 offers measurements in all basic electrical functions plus:

The 293 is a digital clamp meter plus DMM with True RMS capabilities. The 293 offers measurements in all basic electrical functions, plus:

True RMS: Provides accurate and dependable readings of non-linear loads.
Bar Graph: When measuring frequency, bar graph indicates current level.
TRIM Mode: Smooths out unstable readings.
Peak Mode: For start-up and inrush currents.
Sleep Mode: Preserves battery life.
Data Hold: Holds the reading on the display for easy viewing.
True RMS 700 Amps AC.
Measure AC/DC volts, resistance and continuity.
Peak hold function.
Data hold.
CAT III 600 V rated.
cULus 61010.
3-year limited warranty.

Specifications

Range Selection: Auto/Manual.
Display Specifications: 4,000 Count Analog Bar Graph.
Basic Features: AC Volts DC Volts AC Amps Resistance Diode Test Audible Continuity.
Basic DC Accuracy: 0.75%.
DC Voltage (maximum): 750V.
Resolution (maximum): 0.01V.
AC Voltage (maximum): 750V.
Resolution (maximum): 0.01V.
Resolution (maximum): 0.01A.
AC Amps (maximum): 700A.
Resolution (maximum): 0.01A.
Resistance (maximum): 40KΩ.
Resolution (maximum): 0.1Ω.
Frequency (maximum): 10KHz.
Resolution (maximum): 0.1Hz.
Agency Approval: CEIEC 1010: CATIII; 600V cULus 61010.
Overall Dimensions: 40mm x 190mm x 65mm (1.5in x 7.25in x 2.5in).
Weight: 315g (11.1oz).
