TPI Digital Multimeter (TP-122)

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

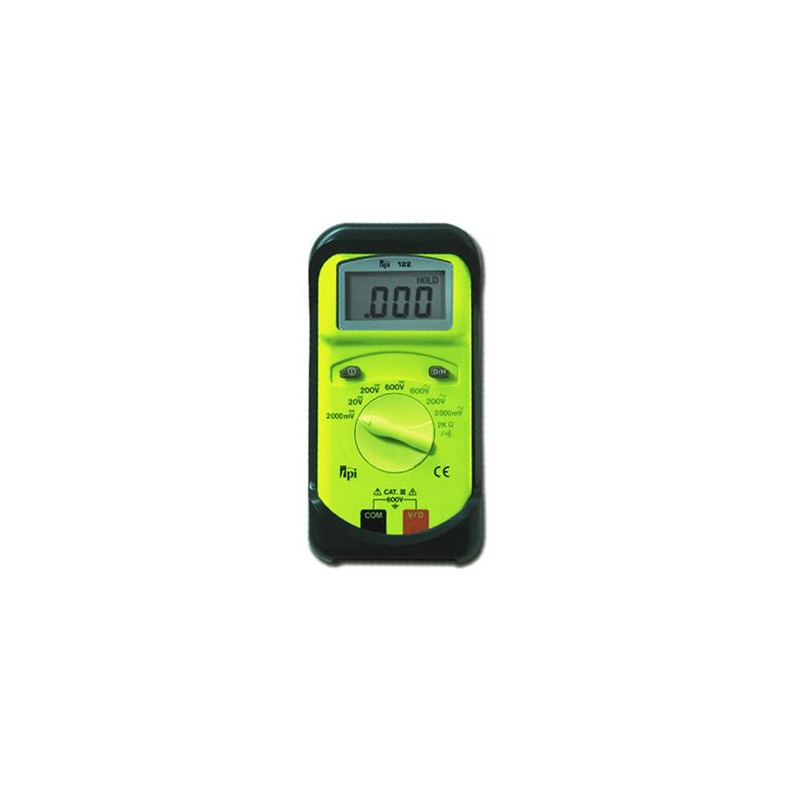

TPI Digital Multimeter (TP-122)

Compact DMM with adapter range for optional accessories, 0.5% DCV basic accuracy.

The TPI Model 122 with adapter range for optional accessories is a compact, basic DCV 0.5% accuracy DMM.

Usage Tip: When using the Model 122, press the DATA-H button at any time on any function or range to freeze the reading on the LCD display. This function is very useful when measuring in locations where the display is difficult to read.

• 2,000 mvDC (2 DCV) adapter range.
• 2,000 count display.
• 0 to 600 volts AC and DC.
• 0 to 2,000 ohms.
• Audible continuity.
• 10 MOHM internal impedance.
• 0.5 % DCV basic accuracy.
• cULus 61010-1.
• CAT II – 1000V, CAT III – 600V.

Specifications

• DC Volts: Maximum Input: 600V Maximum Resolution: 1mV Accuracy: +/-0.5%.
• AC Volts: Maximum Input: 600V Maximum Resolution: 1mV Accuracy: +/-1.2%.
• DC Amps: N/A.
• AC Amps: N/A.
• Resistance (Ohms): Maximum Input: 2KΩ Maximum Resolution: 0.001Ω Accuracy: +/-0.5%.
• Frequency: N/A.
• Capacitance: N/A.
• Inductance: N/A.
• Temperature (K-Type Thermocouple): N/A.
• Continuity: Audible at less than 100Ω.
• Diode: N/A.
• Duty Cycle: N/A.
• True RMS Responding: No.
• Conductance: No.
• Pulse Width: No.
• Data Hold: Yes.
• Min/Max Record: No.
• Time Stamp Logging: No.
• Relative Mode: No.
• Compare Mode: No.
• RS-232 Output: No.
• Process Loop Output: No.
• Sleep Mode / Auto Off: No.
• Protective Boot: Yes (standard).
• Display Type: 2000 count LCD.
• Range Selection: Manual.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Storage Temperature: 14°F to 122°F (-10°C to 50°C).
• Humidity: 80% non-condensing.
• Size: 6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot.
