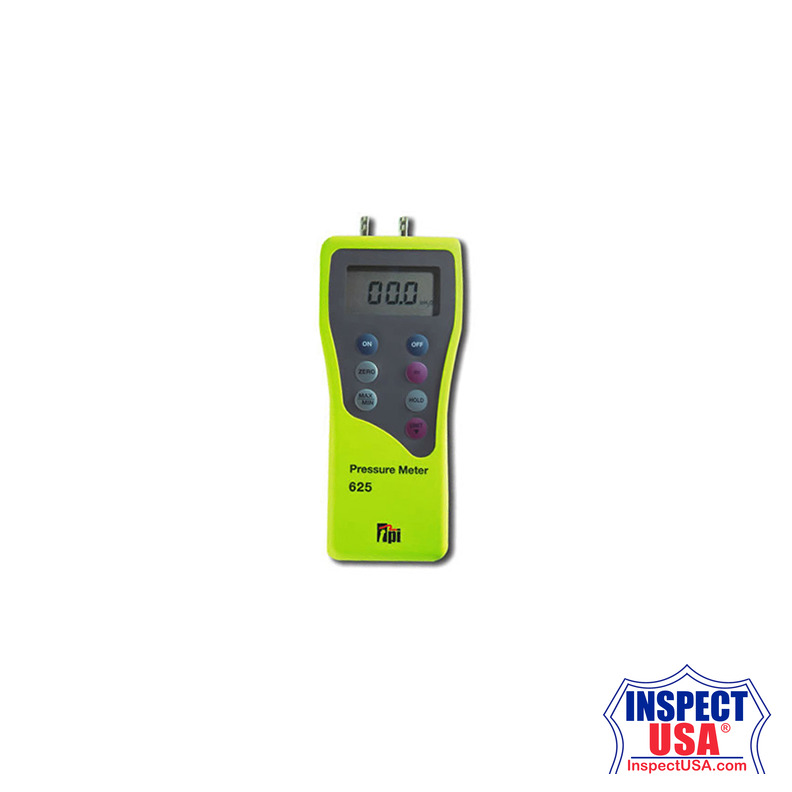

TPI Dual Input Differential Manometer (TP-625)

TPI Dual Input Differential Manometer (TP-625)

The 625 Dual Input Differential Manometer with ±80 inH2O range and 0.01 inH2O resolution is a hand held pressure meter with superior resolution.

The high accuracy, high resolution TPI 625 is a handheld Dual Input Digital Manometer with superior three decimal place resolution.

The 625 comes complete with the following accessories:

• Dual input with +/-80" H2O range.
• Seven units of measure (mbar, kPa, PSI, mmHg, inHg, mmH2O, inH2O).
• Display – 4 digit dual line with backlight.
• Smooth – Stabilizes display when measuring fluctuating pressures.
• Data Hold – Freezes reading on display.
• Min / Max – Records Min/Max readings.
• Auto Off – Conserve battery power.

Specifications

• Units of Measure: inH20 ±40 mbar ±100 kPa ±10 psi ±1.4 mmH20 ±1016 mmHg ±75 inHg ±2.9.
• Measurement Range: ±80" H2O.
• Resolution (max): 0.01" H2O.
• Functions: One Touch Zero, Data Hold, Back-light, Unit Selection, Smoothing, Auto Power Off, Min/Max Record.
• Input Type: Dual Differential (1/4" Barbed).
• Display: :4 Digit LCD with Backlight.
• Battery Life: 80 Hours (Typical).
• Battery Type: 9V Alkaline.
• Auto Power Off: 40 Minutes.
