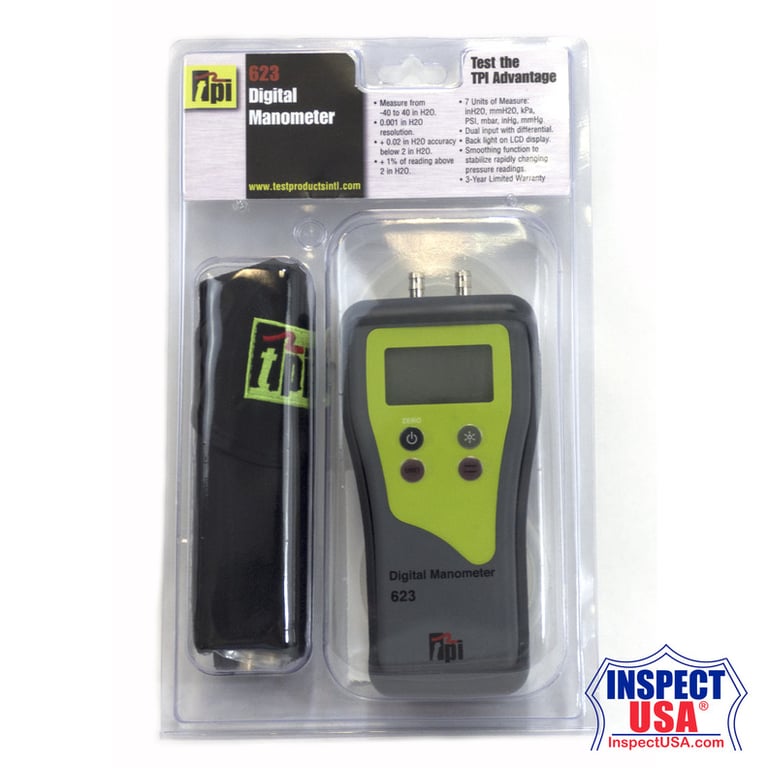

TPI Dual Input High Resolution Digital Manometer (TP-623)

TPI Dual Input High Resolution Digital Manometer (TP-623)

The 623 is a High Accuracy, Dual Input Autoranging Digital Manometer with Three Decimal Place Resolution.

The high accuracy, high resolution TPI 623 is a hand held Dual Input Digital Manometer with superior three decimal place resolution.

The 623 comes complete with the following accessories:

• 0.001 inH2O/kPa resolution to +/- 9.999 inH20/kPa input.
• High accuracy +/-0.02 inH2O less than 2 inH20; 1% above 2 inH20.
• Temperature compensated.
• Overpressure protection to +/- 50 inH20.
• Trim mode to stabilize fluctuating pulse readings.
• Seven units of measure.

Specifications

• Measurements: inH20 ±40 mbar ±100 kPa ±10 psi ±1.4 mmH20 ±1016 mmHg ±75 inHg ±2.9.
• Auto Range: 0.0 to ±100 mbar 0.0 to ±40 inH20.
• Input Type: Single (1/4" Barbed).
• Accuracy: ±0.02 inH20(<2 inH20) ±1%rdg (>2inH20).
• Over Pressure: 50 inH20.
• Relative Humidity: 0% to 80%.
• Operating Temperature: 32°F to 104°F (0°C to 40°C).
• Auto Power Off: After 20 Minutes.
• Input Type: Differential.
• Auto Power Off: 40 minutes.
