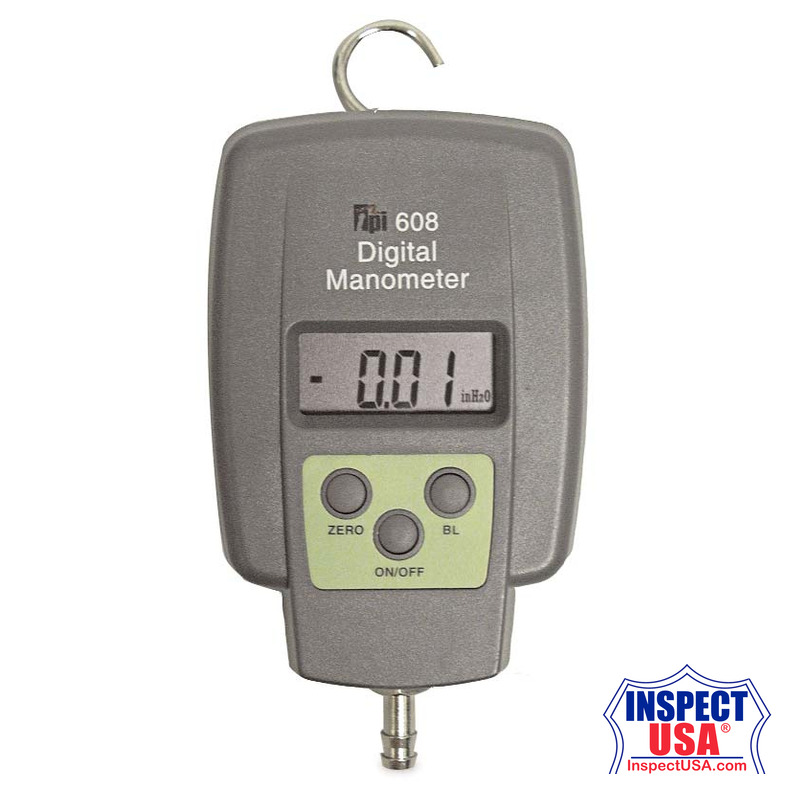

TPI Single Input Manometer (TP-608)

TPI Single Input Manometer (TP-608)

Single input manometer with +/-60inH2O range. Four units of measure: inH2O, mbar, KPa, PSI and mmH20. Backlight display.

The 608 digital manometer measures pressure or vacuum in four units of measure. Please follow manufacturers recommendations on all equipment being serviced with the 608.

The 608 comes complete with the following accessories:

• Single input with +/-60" H2O range.
• Four units of measure (inH2O, mbar, KPa, PSI and mmH20).
• Display: Display – 4 digit with backlight.
• Auto Off: Conserve battery power.
• Built in hanging hook and back magnets.

Specifications

• Measurement Range: ±60" H2O.
• Display: 4 Digit LCD with backlight.
• Input Type: Single (1/4" Barbed).
• Resolution (max): 0.01" H2O.
• Accuracy: +/-1% of full scale.
• Functions: One Touch Zero, Back-light, Selectable units of measure.
• Units of Measure: 4 Units (inH2O, mbar, KPa, PSI).
• Battery Type: 9V Alkaline.
• Battery Life: 200 hours (Typical).
• Auto Power Off: 40 minutes.
