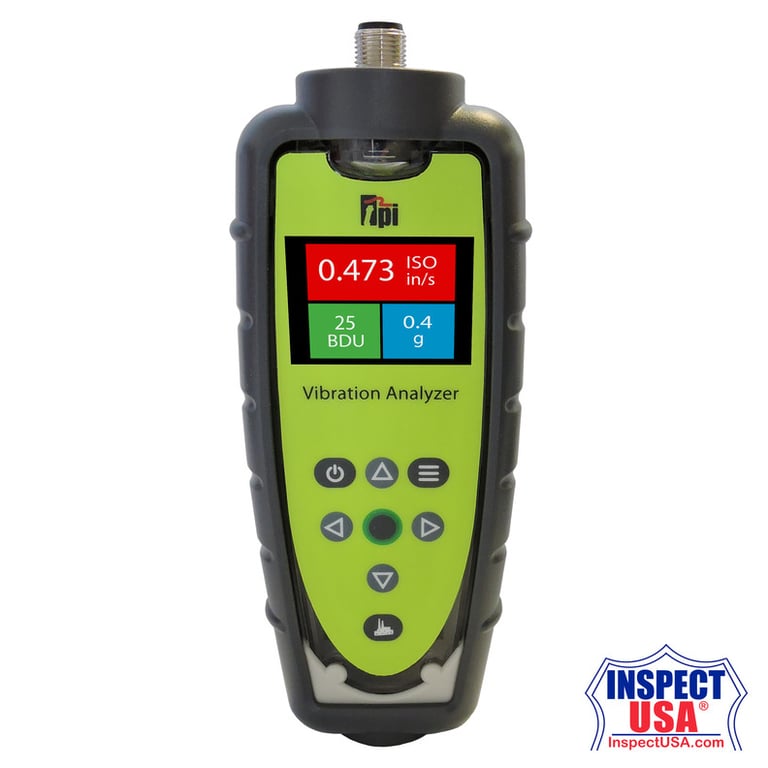

TPI Smart Vibration Analyzer (TP-9084)

TPI Smart Vibration Analyzer (TP-9084)

Smart Vibration Analyzer 9084 Interprets, Analyzes and Trends Machine Condition including bearing wear. Wireless Charging.

Smart Vibration, Bearing Condition & Temperature Analyzer.

The TPI 9084 is a simple, easy to use, low cost vibration meter that records, analyses and displays vibration and bearing wear at the push of a button.

• Find machine faults before they stop your machine.
• Increase productivity and lower maintenance costs.

Applications

• Collect vibration data.
• Trend data using VibTrend PC software.
• Standard Cable mounted accelerometer with magnet.
• USB docking station to download to a PC.
• ISO built-in Alarms.
• Easily identify bearing problems with BDU (Bearing Damage Unit) Reading.
• Easily identify problems with built-in band filters: 1X (unbalance) 2X (misalignment) 3X (looseness).
• 800 line FFT (spectrum).
• Wireless charging.
• Ruggedized IP67 case.

Specifications

• Size: H 7.95" W 2.36".
• Weight: 9.8oz (280g).
• Environmental: Water: IP67 Waterproof Operating: 32°F to 122°F (0°C to 50°C) Storage: -4°F to 158°F (-20°C to 70°C).
• Power supply: Lithium ion wireless charging.
• Battery life between charges: 1,500 measurements or approximately 50 hours of normal use.
• Frequency ranges: ISO: 2/10Hz - 1kHz g: 10Hz - 10kHz BDU: 1kHz - 10kHz.
• Accuracy: +/-5%.
• Frequency resolution: 800 lines.
• Displayed amplitude units: Acceleration in g Velocity in inches per second or mm per second Bearing damage in BDU.
• Displayed frequency units: Hz, CPM or RPM.
• Displayed displacement: Peak or peak to peak.
• Input range: +/- 50 g.
• Dynamic range: 96 dB.
• Accelerometer connection: 5 pin MIL connector cable with magnet and temperature sensor.
• Communication: Bluetooth or USB docking station and cable to PC; data integration using software C-Trend II.
• Standard accessories: A9101 Low power accelerometer with A9105 cable, temp sensor and magnet, A9081A docking station with USB cable, Standard software and carrying case and A9086 Protective boot with magnets.
