TPI Smart Vibration Meter BNC Cable Accelerometer with Magnet (9071CRT)

Coming soon

Model	9071CRT
Manufacturer	TPI
Category	Vibration Meters
Price	$966.42
Status	Coming soon

Ask about availability Browse all Vibration Meters

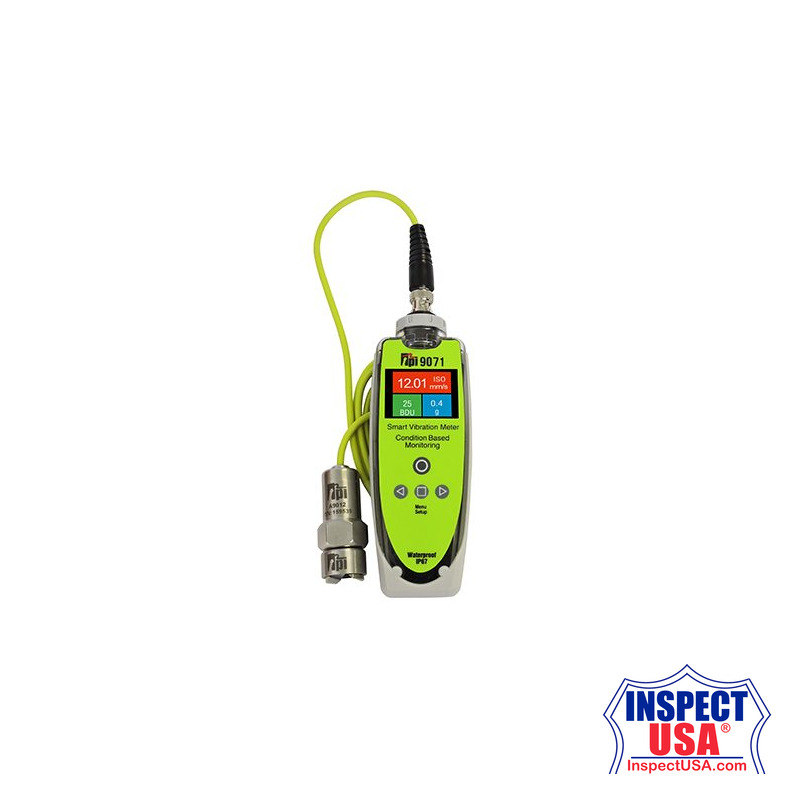

TPI Smart Vibration Meter BNC Cable Accelerometer with Magnet (9071CRT)

The TPI 9071 is a simple, easy to use, low cost vibration meter. Record, analyze and display vibration signals at the push of a button.

ANALYZE • INTERPRET • SAVE Vibration analysis at the touch of a button!

The TPI 9071 analyzes & interprets readings: ISO machine alarms and BDU reading indicate overall machine and bearing condition; clear picture of machine problems detects imbalance, misalignment and looseness; 800-line spectrum with zoom and cursor to identify complex issues.

This configuration (9071CRT) is: 9071 with Calibration Certificate.

Built-in ISO Alarms.
Find machine faults before they stop your machine.
Increase productivity and lower maintenance costs.
Full Color LED Display.
Collect data.
Standard Cable mounted accelerometer with magnet.
ISO built-in Alarms.
Easily identify bearing problems with BDU Reading.
Easily identify problems with built-in band filters: 1X (unbalance) 2X (misalignment) 3X (looseness).
800 line FFT (spectrum).
Ruggedized IP67 case.
3-year Limited Warranty.

Specifications

Size: H 7.95" W 2.36" 200 mm x 60mm x 26mm.
Weight: 9.8oz (280g)(not including magnet).
Environmental: * Water: IP67 Waterproof * Operating: 32°F to 122°F (0°C to 50°C) * Storage: -4°F to 158°F (-20°C to 70°C).
Power Supply: 2xAA batteries.
Battery Life: Approximately 50 hours of normal use.
Frequency Ranges: 2/10Hz – 1kHz ISO 2Hz – 10kHz Total g 1kHz – 10kHz Bearing Analysis.
Frequency Resolution: 100 / 800 lines.
Displayed Amplitude Units: Acceleration in g Velocity in inches per second or mm per second Bearing Damage in BDU.
Displayed Frequency Units: Hz, CPM or RPM.
Input Range: +/- 50 g (with supplied accelerometer).
Dynamic Range: 72 dB (0.05g resolution).
Auto set up of VA bands: Yes.
Measurement Storage: 10 blocks / 20 readings per block.
Accelerometer Connection: BNC connector cable with removable magnet (1mV/g – 10,000mV/g).
Reading Storage: 10 blocks/ 20 readings per block.
Standard Accessories: A9012 IEPE accelerometer with cable A9073 magnet A9074 Soft pouch.
Optional Accessories: A9086 Protective boot with magnets.
