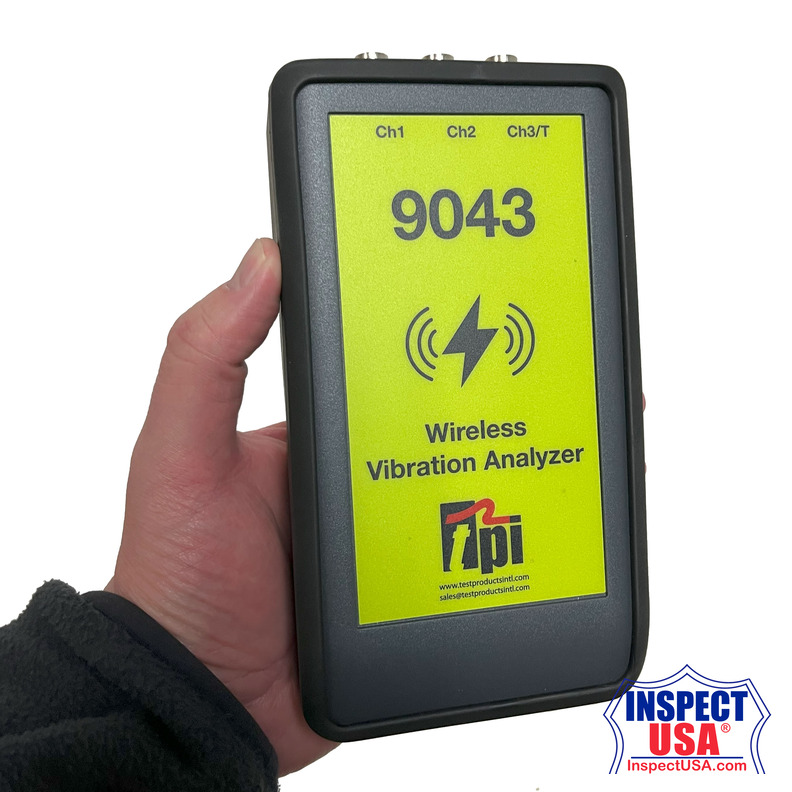

TPI ULTRA III 3 Channel Vibration Analyzer/2 Plane Balancer (9043K3)

Coming soon

Model	9043K3
Manufacturer	TPI
Category	Vibration Meters
Price	$9,095.45
Status	Coming soon

Ask about availability Browse all Vibration Meters

TPI ULTRA III 3 Channel Vibration Analyzer/2 Plane Balancer (9043K3)

9043 Smart Wireless Three Channel Vibration & Bearing Wear Analyzer & Data Collector.

Works with the FREE, subscription FREE Ultra III Android Tablet app

The 9043 is a 3-channel vibration analyzer and data collector with 2 plane balancing capability. It features true simultaneous 3 channel capture for versatility, 24-bit A/D converter for high resolution, and wireless communication to an Android tablet running the TPI Ultra III app.

This configuration (9043K3) is: Same as 9043K2 with 9075 wireless sensor and wireless sensor activation key.

Wireless or USB-C Charging.
Wireless communication to Android Tablet allowing readings to be viewed from a safe distance with analyzer behind safety barrier.
True simultaneous 3 channel capture.
Standard BNC connectors.
Rugged design – IP67 rating.
Compatible with Triaxial Accelerometer.
Compatible with Proximity Probes.
Data transfer by USB-C where Bluetooth is not permitted.
Supplied in protective, magnetic, rubber boot for hands free use.
24 bit A/D Converter.
DC to 30kHz Frequency Range.
100 to 51,200 Line Resolution.
108dB Dynamic Range.

Download Users Manual (PDF format)
