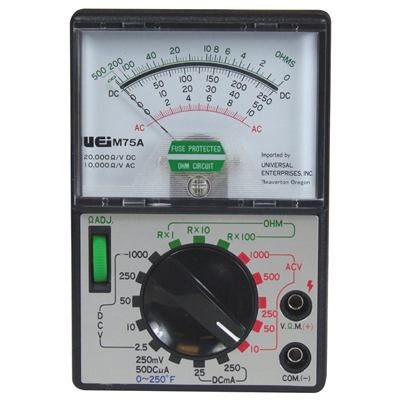

UEI Analog Multimeter (M75A) 17 Ranges

Reference only — not for sale

Model	M75A
Manufacturer	UEI
Category	Power Testers
Status	Discontinued

Browse all Power Testers Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

The M75A has the features you need for testing electrical and HVAC/R systems. Its voltage ranges are scaled to keep typical readings in the middle of the scale for increased accuracy and resolution. It also includes a low ohm scale to test critical connections as well as micro-amps and milli-volts functions to verify heat anticipator and flame safeguard circuits. The M75A has the following features:

17 ranges
1000 Volts AC and DC
Resistance 50 kilohm
DC micro/milli amps
DC millivolt scale allows use of adapters
Color-coded and mirrored scale plate
Three year limited warranty

Specifications:

Ranges:
- DC Millivolts 0 - 250 mV
- DC Volts 0 - 2.5, 10, 50, 250, 1000 V
- DC Microamps 0 - 50 microns;A
- DC Milliamps 0 - 25. 250 mA
- OHMS 0 - 500!, 5K, 50K
- AC Volts 0 - 10, 50, 250, 500, 1000 V
Temperature: 0 - 250°F
Accuracy:
- DC ±3% of full scale
- OHMS ±3% of scale length
- AC ±4% of full scale
- Temperature ±2 divisions
Input impedance 20K ohms / C DC, 10K ohms / V AC
Batteries Two 1.5V, size AA (NEDA #15D) batteries
Fuse 1/4A (2.0 ohm internal resistance) 3AG series

Note: To maintain calibration accuracy and instrument protection, replacement fuse must be of the proper current and resistance value.

Standard Accessories:
Test leads (set) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ATL3
Test leads, rubber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ATL25
Alligator clip adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AAC
Fuse 1/4A, 2! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AF2
Battery 1.5V, size AA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AB1
Optional Accessories:
Temperature adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TA2K

Download Users Manual (PDF format)
