UEI Phoenix Adapter Hook (CH2) for DL269, DL279 or DL289

Model #: CH2

Condition: New

This item is No Longer Available

No Longer Available
Product 24 of 24

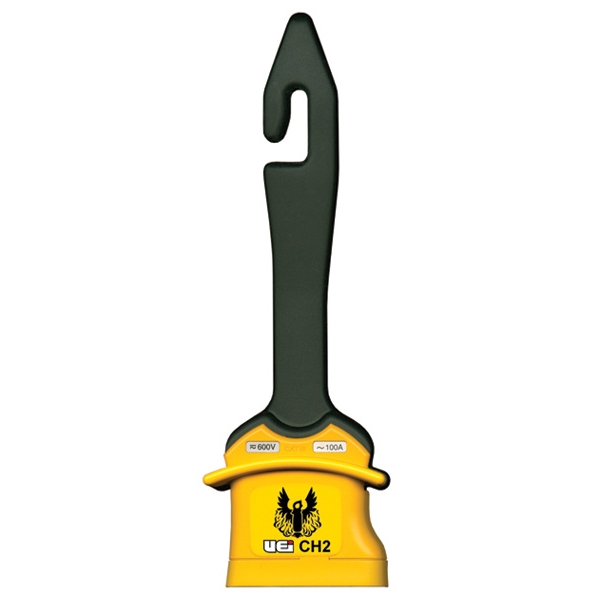

UEI Phoenix Adapter Hook (CH2) for DL269, DL279 or DL289

The CH2 snaps onto the Phoenix meter body and allows measurements of #6 wire and smaller and currents up to 100 Amps AC (the highest amperage able to travel through a #6 wire). The Hook's patent pending technology significantly reduces the impact from current on adjacent wires by providing a virtual closed core inside the tip, which increases accuracy. The Worklight features isn't lost when exchanging the Phoenix base clamp head with The Hook, it also features a bright built-in Worklight, so wires inside dark enclosures are easy to see. The Hook works exclusively on the Phoenix Clamp Meter Series. Three year limited warranty.

Features
• Measures 100A AC
• Easily reaches into tight spaces
• Features a WorkLight for dark work spaces
• AC Amps Measurement: Jaw input (#6 wire or smaller)
• Range: 0 - 100A
• Resolution: 1.0A
• Accuracy: 2% ±20 digits
• Interference from adjacent wires: 0.03 - 1.0A
