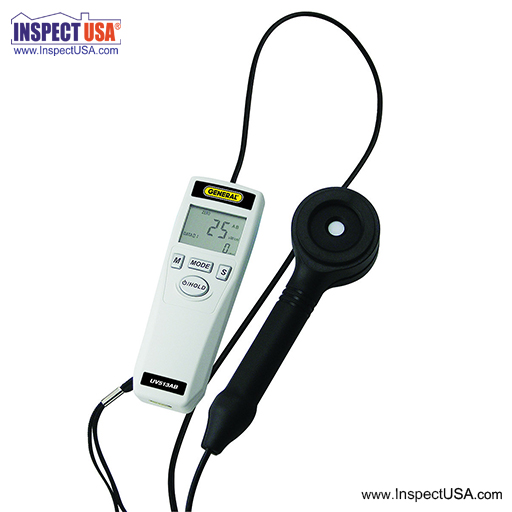

UVA UVB Ultra-Violet Light Meter 280 to 400nm (UV513AB) with Case

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

This ultraviolet light instrument is designed to measure UV AB. The illumination range of the meters allows user to conduct the most precise quantitative measurements of ultraviolet radiation: radiometry and laboratory requirements, UV-curing in off-set printing, lamp UV intensity & aging, industrial process monitoring, semi-conductor fabrication, sunlight UV intensity to prevent skin damage, sterilization and environmental monitoring.

Features:

• 4 digit dual display LCD with backlight
• High and low Measurements range in a unit mW/cm² or µW/cm²
• Threaded socket for tripod mounting
• Compact heavy duty case with built-in magnetic mount
• Automatic measuring
• Min/Max/Avg readings
• Low battery indicator
• Over range indication
• Zero adjustment
• Auto record function has a 20 point memory; Records:
  • Irradiation
  • Maximum, minimum, average or none
  • Unit
• Auto record time intervals are pre-set at:
  • 1, 2, 5, 10 or 30 second intervals
  • 1, 3, 5 or 10 minute intervals

Specifications:

• Illumination Range:
  • Low: 1 to 1999 µW/cm²
  • High: 0.01 to 40.00 mW/cm²
• Accuracy : ±4% +1 digit (at 73.5 ±9°F (23 ±5°C))
• Sample time: approximately 0.3 seconds
• Spectrum range: 280 to 400nm UV AB
• Calibration point: 365nm
• Memory: 20 points plus 1 for interval time
• Operation temperature: 32° to 122°F (0° to 50°C)
• Operating humidity: 10 to 90% RH
• Power source: 1 - 9V battery (included)
• Dimensions:
  • 5.51" x 1.93" x 1.14" (140 x 49 x 29mm)
  • Sensor:
    • Diameter diameter : 1.38" (35mm)
    • Height: 1.0" (25.5mm)
  • Sensor housing (handle): 6.5" x 1.8" x 1.2"
  • Cable Length: 48“ (1220mm)
• Weight: 3.2oz (90g) approximately (meter only)

Supplied with:

• 9 volt alkaline battery
• Instruction manual
• Factory calibration certificate
• Wrist strap
• Padded hard case
