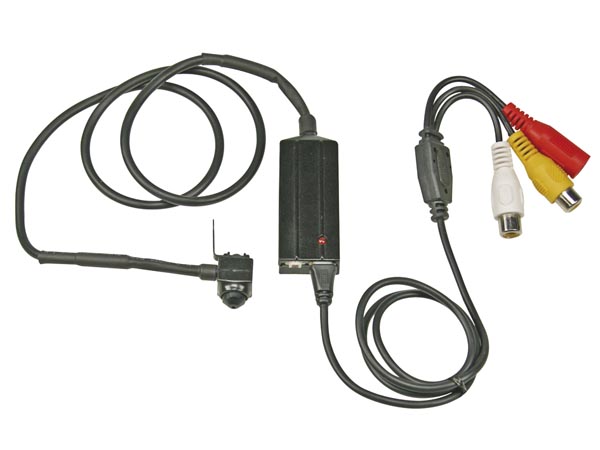

Velleman Digital Color Micro Camera (V-CAMCOLH2U)

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Specifications:

• image sensor: 1/4" Sony CCD
• horizontal resolution: 420 TV lines
• effective pixels: 510(H) X 492(V) NTSC
• scanning system: 2:1 internal
• synchronization: internal
• S/N ratio: >48dB
• gamma correction: R=0.45
• min. illumination: 0.5 lux
• video out signal: 1.0Vp-p / 75 ohms
• BLC: auto
• lens: 3.7mm super cone pinhole lens
• horizontal view angle: 63.5°
• power supply: 12VDC adapter
• current consumption: 120mA max.
• gain control: auto
• white balance: auto
• AGC: auto
• electronic shutter: 1/50-1/100000 sec
• operating temperature: 14°F~140°F
• cable: 31 1/2"
• dimensions: 15/32" x 15/32" x 25/32"
• weight: 2.68 oz

Connection:

• red: 12VDC power supply input
• yellow: video output
• white: audio output (if CAMCOLH2/MIC is used)

Download User Manual (PDF format)
