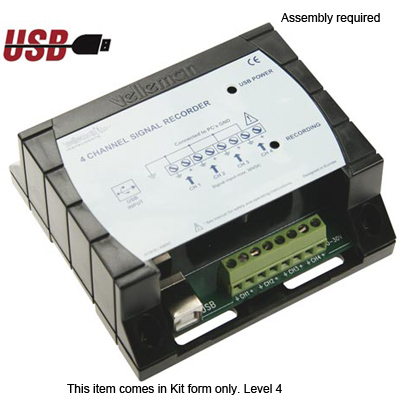

Velleman Kit 4 Channel DATA LOGGER (V-K8047) Assembly Required

Reference only — not for sale

Model	K8047
Manufacturer	Velleman
Category	Software & Cables
Status	Discontinued

Browse all Software & Cables Ask us for a replacement

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

Velleman Kit 4 CHANNEL RECORDER / LOGGER - Assembly & Soldering Required - Level 4

Features:

Record DC signals or slow moving signals over very long periods
Measurements are automatically stored on your hard disk for further processing
USB connection, there is no need for power supply and installation is easy and straight forward
Signals are instantly displayed on the PC screen using analog or DVM display
USB cable included
PC-LAB2000 Software included
Comes with enclosure

Download Assembly Instructions

Specifications:

Hardware:
- USB connected and powered
- four DC coupled input channels
- input resistance: 1Mohm
- maximum samples per second: 100
- four input ranges: 3V / 6V / 15V and 30V
- sensitivity: 10mV
- accuracy: ± 3% of full scale
- maximum input: 30V DC
- power and recording/diagnostic LED
Software:
- analogue trace or digital DVM readout
- 4 simultaneous channels recording
- minimum / maximum sample hold function for DVM
- from 1 sec to 1000 sec per division
- storage and recall of screens (full color) or data
- automatic recording option for long time recordings
- on screen markers for time and voltage
- DLL included for own development
System requirements:
- PC, running Win98SE or higher (does not work on WinNT or Win95)
- free USB port
- mouse
- CD-ROM player
