Enclosed & Open Delivery Kit (VT-COMPLETE) 32' Reach

Product details (archived)

The information below is retained for reference only. This item is discontinued and cannot be ordered.

HSI Fire and Safety Complete Smoke, Carbon Monoxide and Heat Detector Testing Kit with Extension Poles

The Perfect Service & Maintenance Test Kit to Test Smoke, Heat and CO Detectors

• Supplied with 28 feet of extension allowing one to test ceilings up to 32 feet high.
• UL / ULC Listed.
• Meets NFPA 72 and International Fire Code Compliance.
• Versa-Test™ Dispenser Accepts Multiple Can Sizes.
• Versa-Poles™ are Durable, Lightweight, Non-Conductive Fiberglass.

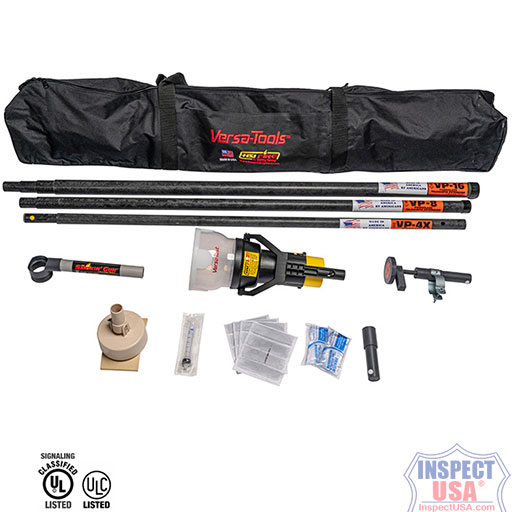

Supplied with:

• (1) VT1 Enclosed Delivery Aerosol Dispenser.
• (1) VP4X Fiberglass 4 foot extension pole.
• (1) VP8 Fiberglass 8 foot extension pole.
• (1) VP16 Fiberglass 16 foot telescoping pole.
• (1) VT694 heat detector tester kit.
  • HC-94 Heat Detector Cup.
  • HA-94 Heat Detector Adapter.
  • VP- Adapter.
  • (6) Heat Pads.
  • (2) Saline Pillows.
  • Saline Syringe.
• (1) VTOD2 Open Delivery Non-Conductive Test Head.
• (1) VTC02-S CO Sleeve.
• (1) 1490-1 can extension.
• Professional Equipment Bag VT-B1.
• Manufacturers Lifetime Warranty on Parts.

Instructions for Use

• Remove bottom cup by screwing it counter clockwise.
• Snap fit aerosol can into the cusp with the nozzle up.
• Screw aerosol cup with can in place clockwise into base unit, until aerosol is slightly released.
• Unscrew the cup counter clockwise approximately half a turn to eliminate the pressure on nozzle.
• Insert yoke end of dispenser into end of Versa-Pole. For additional reach add the VP4X Adapter to top of VP16 and insert dispenser into the adapter.
• Placing the open end of chamber over the detector, ensure a tight seal to the ceiling Press upwards on the pole to engage. Only slight upwards pressure is required to release the appropriate amount of gas to activate the alarm’s sensor.
• Remove chamber from alarm to clear the sensing chamber.


Download Users Manual (PDF format)
